Cotterman® Adjustable Self-Closing Safety Gates can be used as barriers to prevent unintended egress through guardrail openings in accordance with OSHA and ANSI standards.

Any guardrail system with a personnel opening can be protected to OSHA standard with one of the two Cotterman® Adjustable Self-Closing Safety Gates. Cotterman® Safety Gates meet all applicable ANSI and OSHA standards.

  • Versatile, can be mounted to round rail, square rail, angular rail of up to 2″, or a firm reinforced wall surface.
  • Stainless steel spring closes the gate after each pass-thru.
  • Gate width is available in two adjustable size ranges to fit openings of 16″ to 26″ or 24″ to 40″. Gate width is adjustable in 2″ increments.
  • Available in safety yellow or gray powder coated finish with zinc rich powder coat primer for corrosion resistance, or stainless steel construction.

VIEW PRODUCT LITERATURE

Product  FEATURES

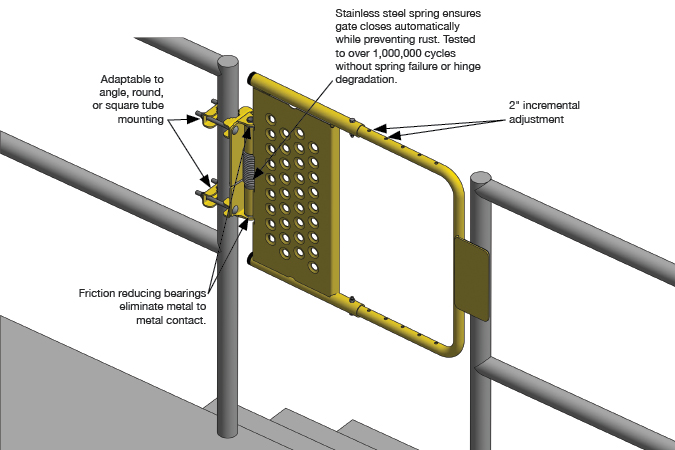

safety-gate-drawing2

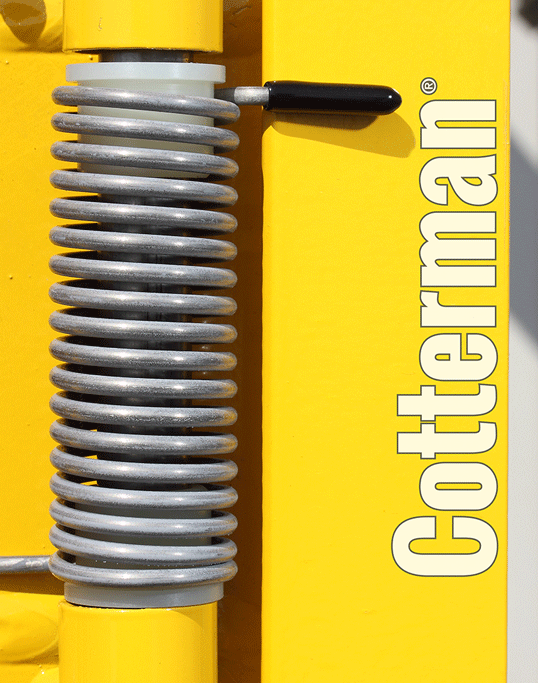

Tested to over 1,000,000 cycles without spring failure or hinge degradation. Stainless Steel spring ensures gate closes automatically while preventing rust.

Anti-friction bearings provide smooth operation and long life, eliminating metal to metal contact

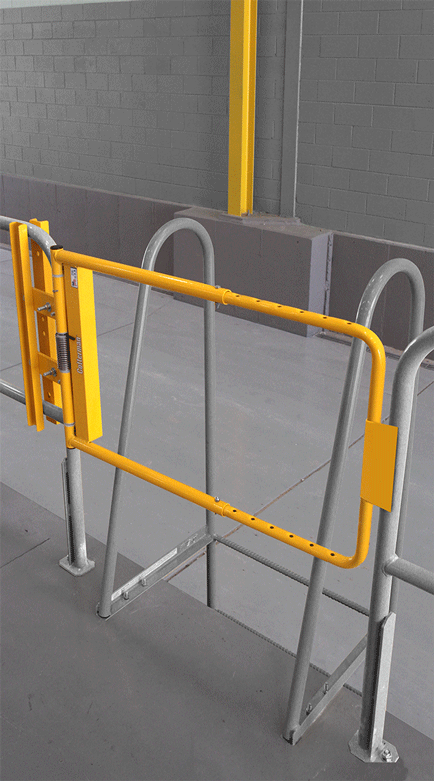

cotterman-safety-gate

NEW! SELF-CLOSING SAFETY GATE
NO TORSION BARS


Short DescriptionFinishPart Number
16-26″ Adjustable Self Closing Safety GateStainless SteelSG1626SP1S
16-26″ Adjustable Self Closing Safety GateGray Powder CoatSG1626ZC1P1S
16-26″ Adjustable Self Closing Safety GateSafety Yellow Powder CoatSG1626ZC2P1S
24-40″ Adjustable Self Closing Safety GateStainless SteelSG2440SP1S
24-40″ Adjustable Self Closing Safety GateGray Powder CoatSG2440ZC1P1S
24-40″ Adjustable Self Closing Safety GateSafety Yellow Powder CoatSG2440ZC2P1S
cotterman-safety-gate-w-torsion-bars

SELF-CLOSING SAFETY GATE
WITH TORSION BARS


Short DescriptionFinishPart Number
16-26″ Adjustable Self Closing Safety GateStainless SteelAG1626SP1S
16-26″ Adjustable Self Closing Safety GateGray Powder CoatAG1626ZC1P1S
16-26″ Adjustable Self Closing Safety GateSafety Yellow Powder CoatAG1626ZC2P1S
24-40″ Adjustable Self Closing Safety GateStainless SteelAG2440SP1S
24-40″ Adjustable Self Closing Safety GateGray Powder CoatAG2440ZC1P1S
24-40″ Adjustable Self Closing Safety GateSafety Yellow Powder CoatAG2440ZC2P1S
