NEW OSHA FIXED LADDER SAFETY REQUIREMENT – EFFECTIVE ON OR AFTER NOVEMBER 19, 2018 This deadline requires that any Fixed Ladder installed on, or after November 19, 2018 that extend more than 24 feet (7.3 m) above a lower level, be equipped with a PERSONAL FALL ARREST SYSTEM or a LADDER SAFETY SYSTEM. See OSHA Subpart D – Walking, Working Surfaces 1910.21 for more information.

_________________________________________________________________________________________________________

fl-on-wall

VIEW PRODUCT LITERATURE

Cotterman®  Fixed Steel Ladders are designed for use where safe, solid vertical climbing access is required. Series F and Series M modular fixed steel ladders are available with and without walk-thru handrails at the top landing surface.  All Cotterman® fixed ladders meet applicable OSHA and ANSI standards.

SERIES F FIXED LADDERS: Ladders are heavy duty welded assemblies.

SERIES M MODULAR FIXED LADDERS: Ladders are heavy duty sub-assemblies, no section is greater than 7′ in length.

  • Side members are 1/4″x2″x2″ steel angle. Climbing rungs are 3/4″ corrugated steel round rungs spaced on 12″ centers. Stand-off brackets are 7″

FIXED LADDERS WITH WALK-THRU HANDRAILS: Ladders are designed for applications where safe landing access is required. They are one-piece welded assemblies for use in applications less than 20′ in vertical height.

  • Side members are 1/4″x2″x2″ steel angle. 3/4″ corrugated steel round climbing rungs on 12″ centers. Stand-off mounting brackets are 7″.
  • Walk-thru handrails extend 42″ above landing surface. Mounting brackets included.
  • Welded one-piece.

FIXED LADDERS WITH SAFETY CAGES: Standard fixed steel ladders are combined with safety cage protection. Available in 10′ through 29′ sizes and ideal for hatchway or side-step landing access.

  • Cages have flared bottom opening for easy entry.
  • Left or right side step access cage designs are available at no charge.
  • Cage begins 7′ from bottom of ladder.

FIXED LADDER WITH WALK-THRU HANDRAILS AND SAFETY CAGES: Designed for safe landing access and available from 10′ to 29′. Cages and walk-thru handrails extend 42″ above landing surface.

  • Cages have flared bottom opening for easy entry.
  • Cage begins 7′ from bottom of ladder.

SELF-CLOSING SAFETY GATES FOR FIXED LADDERS WITH WALK-THROUGH HANDRAILS Any guardrail system with a personnel opening can be protected to OSHA standard with a Cotterman® Self-Closing Safety Gate. Our adjustable Safety Gates meet or exceed OSHA 1910 Subpart D and ANSI A1264.1-2017.

Standard F Series Steel Fixed Ladders


Description Overall Length (inches) Length – Top to Bottom Rung (feet) Shipping Weight (lbs.) Part Number Drawings
2 Rung Fixed Steel Ladder 15 1 19 F2S

3 Rung Fixed Steel Ladder 27 2 27 F3S

4 Rung Fixed Steel Ladder 39 3 35 F4S

5 Rung Fixed Steel Ladder 51 4 43 F5S

6 Rung Fixed Steel Ladder 63 5 52 F6S

7 Rung Fixed Steel Ladder 75 6 60 F7S

8 Rung Fixed Steel Ladder 87 7 66 F8S

9 Rung Fixed Steel Ladder 99 8 77 F9S

10 Rung Fixed Steel Ladder 111 9 88 F10S

11 Rung Fixed Steel Ladder 123 10 96 F11S

12 Rung Fixed Steel Ladder 135 11 105 F12S

13 Rung Fixed Steel Ladder 147 12 113 F13S

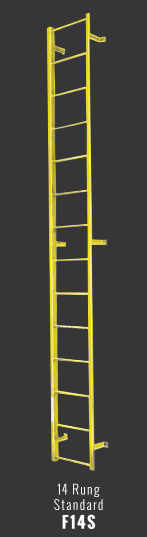

14 Rung Fixed Steel Ladder 159 13 122 F14S

15 Rung Fixed Steel Ladder 171 14 130 F15S

16 Rung Fixed Steel Ladder 183 15 139 F16S

17 Rung Fixed Steel Ladder 195 16 150 F17S

18 Rung Fixed Steel Ladder 207 17 158 F18S

19 Rung Fixed Steel Ladder 219 18 167 F19S

20 Rung Fixed Steel Ladder 231 19 175 F20S

21 Rung Fixed Steel Ladder 243 20 186 F21S

22 Rung Fixed Steel Ladder 255 21 197 F22S

23 Rung Fixed Steel Ladder 267 22 208 F23S

24 Rung Fixed Steel Ladder 279 23 219 F24S

25 Rung Fixed Steel Ladder 279 24 230 F25S

26 Rung Fixed Steel Ladder 279 25 241 F26S

27 Rung Fixed Steel Ladder 279 26 252 F27S

28 Rung Fixed Steel Ladder 279 27 263 F28S

29 Rung Fixed Steel Ladder 279 28 274 F29S

30 Rung Fixed Steel Ladder 279 29 285 F30S

31 Rung Fixed Steel Ladder 279 30 296 F31S

32 Rung Fixed Steel Ladder 279 31 307 F32S

33 Rung Fixed Steel Ladder 279 32 318 F33S

34 Rung Fixed Steel Ladder 279 33 329 F34S

35 Rung Fixed Steel Ladder 279 34 340 F35S

36 Rung Fixed Steel Ladder 279 35 351 F36S

37 Rung Fixed Steel Ladder 279 36 362 F37S

38 Rung Fixed Steel Ladder 279 37 373 F38S

39 Rung Fixed Steel Ladder 279 38 384 F39S

40 Rung Fixed Steel Ladder 279 39 395 F40S

41 Rung Fixed Steel Ladder 279 40 406 F41S

42 Rung Fixed Steel Ladder 279 41 417 F42S

43 Rung Fixed Steel Ladder 279 42 428 F43S

44 Rung Fixed Steel Ladder 279 43 439 F44S

45 Rung Fixed Steel Ladder 279 44 450 F45S

46 Rung Fixed Steel Ladder 279 45 461 F46S

47 Rung Fixed Steel Ladder 279 46 472 F47S

48 Rung Fixed Steel Ladder 279 47 483 F48S

49 Rung Fixed Steel Ladder 279 48 494 F49S

50 Rung Fixed Steel Ladder 279 49 505 F50S

Hot-Dip Galvanized finish or Stainless Steel construction can be quoted.

F Series Steel Fixed Ladders with Safety Cage


Description Overall Length (inches) Length – Top to Bottom Rung (feet) Shipping Weight (lbs.) Part Number Drawings
11 Rung Fixed Steel Ladder with Safety Cage 123 10 156 F11SC

12 Rung Fixed Steel Ladder with Safety Cage 135 11 182 F12SC

13 Rung Fixed Steel Ladder with Safety Cage 147 12 197 F13SC

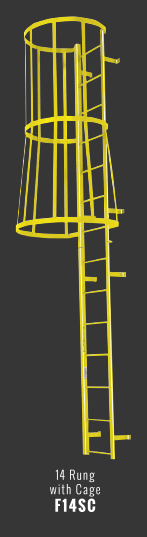

14 Rung Fixed Steel Ladder with Safety Cage 159 13 213 F14SC

15 Rung Fixed Steel Ladder with Safety Cage 171 14 268 F15SC

16 Rung Fixed Steel Ladder with Safety Cage 183 15 282 F16SC

17 Rung Fixed Steel Ladder with Safety Cage 195 16 298 F17SC

18 Rung Fixed Steel Ladder with Safety Cage 207 17 316 F18SC

19 Rung Fixed Steel Ladder with Safety Cage 219 18 342 F19SC

20 Rung Fixed Steel Ladder with Safety Cage 231 19 354 F20SC

21 Rung Fixed Steel Ladder with Safety Cage 243 20 343 F21SC

22 Rung Fixed Steel Ladder with Safety Cage 255 21 355 F22SC

23 Rung Fixed Steel Ladder with Safety Cage 267 22 414 F23SC

24 Rung Fixed Steel Ladder with Safety Cage 279 23 426 F24SC

25 Rung Fixed Steel Ladder with Safety Cage 291 24 444 F25SC

26 Rung Fixed Steel Ladder with Safety Cage 303 25 471 F26SC

27 Rung Fixed Steel Ladder with Safety Cage 315 26 486 F27SC

28 Rung Fixed Steel Ladder with Safety Cage 327 27 501 F28SC

29 Rung Fixed Steel Ladder with Safety Cage 339 28 559 F29SC

30 Rung Fixed Steel Ladder with Safety Cage 341 29 575 F30SC

31 Rung Fixed Steel Ladder with Safety Cage 353 30 575 F31SC

32 Rung Fixed Steel Ladder with Safety Cage 365 31 575 F32SC

33 Rung Fixed Steel Ladder with Safety Cage 377 32 575 F33SC

34 Rung Fixed Steel Ladder with Safety Cage 389 33 575 F34SC

35 Rung Fixed Steel Ladder with Safety Cage 401 34 575 F35SC

36 Rung Fixed Steel Ladder with Safety Cage 413 35 575 F36SC

37 Rung Fixed Steel Ladder with Safety Cage 425 36 575 F37SC

38 Rung Fixed Steel Ladder with Safety Cage 437 37 575 F38SC

39 Rung Fixed Steel Ladder with Safety Cage 449 38 575 F39SC

40 Rung Fixed Steel Ladder with Safety Cage 461 39 575 F40SC

41 Rung Fixed Steel Ladder with Safety Cage 473 40 575 F41SC

42 Rung Fixed Steel Ladder with Safety Cage 485 41 575 F42SC

43 Rung Fixed Steel Ladder with Safety Cage 497 42 575 F43SC

44 Rung Fixed Steel Ladder with Safety Cage 509 43 575 F44SC

45 Rung Fixed Steel Ladder with Safety Cage 521 44 575 F45SC

46 Rung Fixed Steel Ladder with Safety Cage 533 45 575 F46SC

47 Rung Fixed Steel Ladder with Safety Cage 545 46 575 F47SC

48 Rung Fixed Steel Ladder with Safety Cage 557 47 575 F48SC

49 Rung Fixed Steel Ladder with Safety Cage 569 48 575 F49SC

50 Rung Fixed Steel Ladder with Safety Cage 581 49 575 F50SC

Hot-Dip Galvanized finish or Stainless Steel construction can be quoted.

SHIPPING NOTE: All 15 thru 28 rung Series “F” models with cages ship in 2 sections. All 29 and 30 rung models ship in 3 sections.

F Series Steel Fixed Ladders with Walk-Thru Handrails


Description Overall Length (inches) Length – Top to Bottom Rung (feet) Shipping Weight (lbs.) Part Number Drawings
4 Rung Fixed Steel Ladder with Walk-Thru Handrails 80 3 61 F4W

5 Rung Fixed Steel Ladder with Walk-Thru Handrails 92 4 70 F5W

6 Rung Fixed Steel Ladder with Walk-Thru Handrails 104 5 78 F6W

7 Rung Fixed Steel Ladder with Walk-Thru Handrails 116 6 87 F7W

8 Rung Fixed Steel Ladder with Walk-Thru Handrails 128 7 95 F8W

9 Rung Fixed Steel Ladder with Walk-Thru Handrails 140 8 104 F9W

10 Rung Fixed Steel Ladder with Walk-Thru Handrails 152 9 115 F10W

11 Rung Fixed Steel Ladder with Walk-Thru Handrails 164 10 123 F11W

12 Rung Fixed Steel Ladder with Walk-Thru Handrails 176 11 132 F12W

13 Rung Fixed Steel Ladder with Walk-Thru Handrails 188 12 140 F13W

14 Rung Fixed Steel Ladder with Walk-Thru Handrails 200 13 148 F14W

15 Rung Fixed Steel Ladder with Walk-Thru Handrails 212 14 157 F15W

16 Rung Fixed Steel Ladder with Walk-Thru Handrails 224 15 165 F16W

17 Rung Fixed Steel Ladder with Walk-Thru Handrails 236 16 176 F17W

18 Rung Fixed Steel Ladder with Walk-Thru Handrails 248 17 185 F18W

19 Rung Fixed Steel Ladder with Walk-Thru Handrails 260 18 193 F19W

20 Rung Fixed Steel Ladder with Walk-Thru Handrails 272 19 202 F20W

21 Rung Fixed Steel Ladder with Walk-Thru Handrails 284 20 211 F21W

22 Rung Fixed Steel Ladder with Walk-Thru Handrails 296 21 220 F22W

23 Rung Fixed Steel Ladder with Walk-Thru Handrails 308 22 229 F23W

24 Rung Fixed Steel Ladder with Walk-Thru Handrails 320 23 238 F24W

25 Rung Fixed Steel Ladder with Walk-Thru Handrails 332 24 247 F25W

26 Rung Fixed Steel Ladder with Walk-Thru Handrails 344 25 258 F26W

27 Rung Fixed Steel Ladder with Walk-Thru Handrails 356 26 269 F27W

28 Rung Fixed Steel Ladder with Walk-Thru Handrails 368 27 280 F28W

29 Rung Fixed Steel Ladder with Walk-Thru Handrails 380 28 291 F29W

30 Rung Fixed Steel Ladder with Walk-Thru Handrails 392 29 302 F30W

31 Rung Fixed Steel Ladder with Walk-Thru Handrails 404 30 313 F31W

32 Rung Fixed Steel Ladder with Walk-Thru Handrails 416 31 324 F32W

33 Rung Fixed Steel Ladder with Walk-Thru Handrails 428 32 335 F33W

34 Rung Fixed Steel Ladder with Walk-Thru Handrails 440 33 346 F34W

35 Rung Fixed Steel Ladder with Walk-Thru Handrails 452 34 357 F35W

36 Rung Fixed Steel Ladder with Walk-Thru Handrails 464 35 368 F36W

37 Rung Fixed Steel Ladder with Walk-Thru Handrails 476 36 379 F37W

38 Rung Fixed Steel Ladder with Walk-Thru Handrails 488 37 390 F38W

39 Rung Fixed Steel Ladder with Walk-Thru Handrails 500 38 401 F39W

40 Rung Fixed Steel Ladder with Walk-Thru Handrails 512 39 412 F40W

41 Rung Fixed Steel Ladder with Walk-Thru Handrails 524 40 423 F41W

42 Rung Fixed Steel Ladder with Walk-Thru Handrails 536 41 434 F42W

43 Rung Fixed Steel Ladder with Walk-Thru Handrails 548 42 445 F43W

44 Rung Fixed Steel Ladder with Walk-Thru Handrails 560 43 456 F44W

45 Rung Fixed Steel Ladder with Walk-Thru Handrails 572 44 467 F45W

46 Rung Fixed Steel Ladder with Walk-Thru Handrails 584 45 478 F46W

47 Rung Fixed Steel Ladder with Walk-Thru Handrails 596 46 489 F47W

48 Rung Fixed Steel Ladder with Walk-Thru Handrails 608 47 500 F48W

49 Rung Fixed Steel Ladder with Walk-Thru Handrails 620 48 511 F49W

50 Rung Fixed Steel Ladder with Walk-Thru Handrails 632 49 522 F50W

Hot-Dip Galvanized finish or Stainless Steel construction can be quoted.

SHIPPING NOTE: All 15 thru 25 rung Series “F” models with cages and walk-thru handrails ship in 2 sections. All 26 thru 30 rung models ship in 3 sections.

F Series Steel Fixed Ladders with Safety Cages & Walk-Thru Handrails


Description Overall Length (inches) Length – Top to Bottom Rung (feet) Shipping Weight (lbs.) Part Number Drawings
8 Rung Fixed Steel Ladder with Safety Cage & Walk-Thru Handrails 128 7 178 F8WC

9 Rung Fixed Steel Ladder with Safety Cage & Walk-Thru Handrails 140 8 194 F9WC

10 Rung Fixed Steel Ladder with Safety Cage & Walk-Thru Handrails 152 9 210 F10WC

11 Rung Fixed Steel Ladder with Safety Cage & Walk-Thru Handrails 164 10 226 F11WC

12 Rung Fixed Steel Ladder with Safety Cage & Walk-Thru Handrails 176 11 242 F12WC

13 Rung Fixed Steel Ladder with Safety Cage & Walk-Thru Handrails 188 12 268 F13WC

14 Rung Fixed Steel Ladder with Safety Cage & Walk-Thru Handrails 200 13 284 F14WC

15 Rung Fixed Steel Ladder with Safety Cage & Walk-Thru Handrails 212 14 327 F15WC

16 Rung Fixed Steel Ladder with Safety Cage & Walk-Thru Handrails 224 15 353 F16WC

17 Rung Fixed Steel Ladder with Safety Cage & Walk-Thru Handrails 236 16 369 F17WC

18 Rung Fixed Steel Ladder with Safety Cage & Walk-Thru Handrails 248 17 384 F18WC

19 Rung Fixed Steel Ladder with Safety Cage & Walk-Thru Handrails 260 18 401 F19WC

20 Rung Fixed Steel Ladder with Safety Cage & Walk-Thru Handrails 272 19 428 F20WC

21 Rung Fixed Steel Ladder with Safety Cage & Walk-Thru Handrails 284 20 443 F21WC

22 Rung Fixed Steel Ladder with Safety Cage & Walk-Thru Handrails 296 21 458 F22WC

23 Rung Fixed Steel Ladder with Safety Cage & Walk-Thru Handrails 308 22 485 F23WC

24 Rung Fixed Steel Ladder with Safety Cage & Walk-Thru Handrails 320 23 500 F24WC

25 Rung Fixed Steel Ladder with Safety Cage & Walk-Thru Handrails 332 24 515 F25WC

26 Rung Fixed Steel Ladder with Safety Cage & Walk-Thru Handrails 344 25 571 F26WC

27 Rung Fixed Steel Ladder with Safety Cage & Walk-Thru Handrails 356 26 586 F27WC

28 Rung Fixed Steel Ladder with Safety Cage & Walk-Thru Handrails 268 27 601 F28WC

29 Rung Fixed Steel Ladder with Safety Cage & Walk-Thru Handrails 380 28 619 F29WC

30 Rung Fixed Steel Ladder with Safety Cage & Walk-Thru Handrails 392 29 634 F30WC

31 Rung Fixed Steel Ladder with Safety Cage & Walk-Thru Handrails 404 30 634 F31WC

32 Rung Fixed Steel Ladder with Safety Cage & Walk-Thru Handrails 416 31 634 F32WC

33 Rung Fixed Steel Ladder with Safety Cage & Walk-Thru Handrails 428 32 634 F33WC

34 Rung Fixed Steel Ladder with Safety Cage & Walk-Thru Handrails 440 33 634 F34WC

35 Rung Fixed Steel Ladder with Safety Cage & Walk-Thru Handrails 452 34 634 F35WC

36 Rung Fixed Steel Ladder with Safety Cage & Walk-Thru Handrails 464 35 634 F36WC

37 Rung Fixed Steel Ladder with Safety Cage & Walk-Thru Handrails 476 36 634 F37WC

38 Rung Fixed Steel Ladder with Safety Cage & Walk-Thru Handrails 488 37 634 F38WC

39 Rung Fixed Steel Ladder with Safety Cage & Walk-Thru Handrails 500 38 634 F39WC

40 Rung Fixed Steel Ladder with Safety Cage & Walk-Thru Handrails 512 39 634 F40WC

41 Rung Fixed Steel Ladder with Safety Cage & Walk-Thru Handrails 524 40 634 F41WC

42 Rung Fixed Steel Ladder with Safety Cage & Walk-Thru Handrails 536 41 634 F42WC

43 Rung Fixed Steel Ladder with Safety Cage & Walk-Thru Handrails 548 42 634 F43WC

44 Rung Fixed Steel Ladder with Safety Cage & Walk-Thru Handrails 560 43 634 F44WC

45 Rung Fixed Steel Ladder with Safety Cage & Walk-Thru Handrails 572 44 634 F45WC

46 Rung Fixed Steel Ladder with Safety Cage & Walk-Thru Handrails 584 45 634 F46WC

47 Rung Fixed Steel Ladder with Safety Cage & Walk-Thru Handrails 596 46 634 F47WC

48 Rung Fixed Steel Ladder with Safety Cage & Walk-Thru Handrails 608 47 634 F48WC

49 Rung Fixed Steel Ladder with Safety Cage & Walk-Thru Handrails 620 48 634 F49WC

50 Rung Fixed Steel Ladder with Safety Cage & Walk-Thru Handrails 632 49 634 F50WC

Hot-Dip Galvanized finish or Stainless Steel construction can be quoted.

SHIPPING NOTE: All 15 thru 25 rung Series “F” models with cages and walk-thru handrails ship in 2 sections. All 26 thru 30 rung models ship in 3 sections.

M Series Steel Modular Fixed Ladders with Safety Cage


Description Overall Length (inches) Length – Top to Bottom Rung (feet) Shipping Weight (lbs.) Part Number
11 Rung Modular Fixed Steel Ladder with Safety Cage 123 10 156 M11SC
12 Rung Modular Fixed Steel Ladder with Safety Cage 135 11 182 M12SC
13 Rung Modular Fixed Steel Ladder with Safety Cage 147 12 197 M13SC
14 Rung Modular Fixed Steel Ladder with Safety Cage 159 13 213 M14SC
15 Rung Modular Fixed Steel Ladder with Safety Cage 171 14 268 M15SC
16 Rung Modular Fixed Steel Ladder with Safety Cage 183 15 282 M16SC
17 Rung Modular Fixed Steel Ladder with Safety Cage 195 16 298 M17SC
18 Rung Modular Fixed Steel Ladder with Safety Cage 207 17 316 M18SC
19 Rung Modular Fixed Steel Ladder with Safety Cage 219 18 342 M19SC
20 Rung Modular Fixed Steel Ladder with Safety Cage 231 19 354 M20SC
21 Rung Modular Fixed Steel Ladder with Safety Cage 243 20 343 M21SC
22 Rung Modular Fixed Steel Ladder with Safety Cage 255 21 355 M22SC
23 Rung Modular Fixed Steel Ladder with Safety Cage 267 22 414 M23SC
24 Rung Modular Fixed Steel Ladder with Safety Cage 279 23 426 M24SC
25 Rung Modular Fixed Steel Ladder with Safety Cage 291 24 444 M25SC
26 Rung Modular Fixed Steel Ladder with Safety Cage 303 25 471 M26SC
27 Rung Modular Fixed Steel Ladder with Safety Cage 315 26 486 M27SC
28 Rung Modular Fixed Steel Ladder with Safety Cage 327 27 501 M28SC
29 Rung Modular Fixed Steel Ladder with Safety Cage 339 28 559 M29SC
30 Rung Modular Fixed Steel Ladder with Safety Cage 351 29 575 M30SC

Hot-Dip Galvanized finish or Stainless Steel construction can be quoted.

M Series Steel Modular Fixed Ladders with Walk-Thru Handrails


Description Overall Length (inches) Length – Top to Bottom Rung (feet) Shipping Weight (lbs.) Part Number
4 Rung Modular Fixed Steel Ladder with Walk-Thru Handrails 80 3 61 M4W
5 Rung Modular Fixed Steel Ladder with Walk-Thru Handrails 92 4 70 M5W
6 Rung Modular Fixed Steel Ladder with Walk-Thru Handrails 104 5 78 M6W
7 Rung Modular Fixed Steel Ladder with Walk-Thru Handrails 116 6 87 M7W
8 Rung Modular Fixed Steel Ladder with Walk-Thru Handrails 128 7 95 M8W
9 Rung Modular Fixed Steel Ladder with Walk-Thru Handrails 140 8 104 M9W
10 Rung Modular Fixed Steel Ladder with Walk-Thru Handrails 152 9 115 M10W
11 Rung Modular Fixed Steel Ladder with Walk-Thru Handrails 164 10 123 M11W
12 Rung Modular Fixed Steel Ladder with Walk-Thru Handrails 176 11 132 M12W
13 Rung Modular Fixed Steel Ladder with Walk-Thru Handrails 188 12 140 M13W
14 Rung Modular Fixed Steel Ladder with Walk-Thru Handrails 200 13 148 M14W
15 Rung Modular Fixed Steel Ladder with Walk-Thru Handrails 212 14 157 M15W
16 Rung Modular Fixed Steel Ladder with Walk-Thru Handrails 224 15 165 M16W
17 Rung Modular Fixed Steel Ladder with Walk-Thru Handrails 236 16 176 M17W
18 Rung Modular Fixed Steel Ladder with Walk-Thru Handrails 248 17 185 M18W
19 Rung Modular Fixed Steel Ladder with Walk-Thru Handrails 260 18 193 M19W
20 Rung Modular Fixed Steel Ladder with Walk-Thru Handrails 272 19 202 M20W

Hot-Dip Galvanized finish or Stainless Steel construction can be quoted.

M Series Steel Modular Fixed Ladders with Safety Cage & Walk-Thru Handrails


Description Overall Length (inches) Length – Top to Bottom Rung (feet) Shipping Weight (lbs.) Part Number
11 Rung Modular Fixed Steel Ladder with Safety Cage & Walk-Thru Handrails 164 10 226 M11WC
12 Rung Modular Fixed Steel Ladder with Safety Cage & Walk-Thru Handrails 176 11 242 M12WC
13 Rung Modular Fixed Steel Ladder with Safety Cage & Walk-Thru Handrails 188 12 268 M13WC
14 Rung Modular Fixed Steel Ladder with Safety Cage & Walk-Thru Handrails 200 13 284 M14WC
15 Rung Modular Fixed Steel Ladder with Safety Cage & Walk-Thru Handrails 212 14 327 M15WC
16 Rung Modular Fixed Steel Ladder with Safety Cage & Walk-Thru Handrails 224 15 353 M16WC
17 Rung Modular Fixed Steel Ladder with Safety Cage & Walk-Thru Handrails 236 16 369 M17WC
18 Rung Modular Fixed Steel Ladder with Safety Cage & Walk-Thru Handrails 248 17 384 M18WC
19 Rung Modular Fixed Steel Ladder with Safety Cage & Walk-Thru Handrails 260 18 401 M19WC
20 Rung Modular Fixed Steel Ladder with Safety Cage & Walk-Thru Handrails 272 19 428 M20WC
21 Rung Modular Fixed Steel Ladder with Safety Cage & Walk-Thru Handrails 284 20 443 M21WC
22 Rung Modular Fixed Steel Ladder with Safety Cage & Walk-Thru Handrails 296 21 458 M22WC
23 Rung Modular Fixed Steel Ladder with Safety Cage & Walk-Thru Handrails 308 22 485 M23WC
24 Rung Modular Fixed Steel Ladder with Safety Cage & Walk-Thru Handrails 320 23 500 M24WC
25 Rung Modular Fixed Steel Ladder with Safety Cage & Walk-Thru Handrails 332 24 515 M25WC
26 Rung Modular Fixed Steel Ladder with Safety Cage & Walk-Thru Handrails 344 25 571 M26WC
27 Rung Modular Fixed Steel Ladder with Safety Cage & Walk-Thru Handrails 356 26 586 M27WC
28 Rung Modular Fixed Steel Ladder with Safety Cage & Walk-Thru Handrails 268 27 601 M28WC
29 Rung Modular Fixed Steel Ladder with Safety Cage & Walk-Thru Handrails 380 28 619 M29WC
30 Rung Modular Fixed Steel Ladder with Safety Cage & Walk-Thru Handrails 392 29 634 M30WC

Hot-Dip Galvanized finish or Stainless Steel construction can be quoted.

Standard AF Series Aluminum Fixed Ladders


Description Overall Length (inches) Length – Top to Bottom Rung (feet) Ship Weight (lbs.) Part Number
4 Rung Aluminum Fixed Ladder 44 3 14 AF4S
5 Rung Aluminum Fixed Ladder 55 4 17 AF5S
6 Rung Aluminum Fixed Ladder 66 5 20 AF6S
7 Rung Aluminum Fixed Ladder 77 6 23 AF7S
8 Rung Aluminum Fixed Ladder 88 7 26 AF8S
9 Rung Aluminum Fixed Ladder 99 8 29 AF9S
10 Rung Aluminum Fixed Ladder 110 9 34 AF10S
11 Rung Aluminum Fixed Ladder 121 10 37 AF11S
12 Rung Aluminum Fixed Ladder 132 11 40 AF12S
13 Rung Aluminum Fixed Ladder 143 12 43 AF13S
14 Rung Aluminum Fixed Ladder 154 13 46 AF14S
15 Rung Aluminum Fixed Ladder 165 14 49 AF15S
16 Rung Aluminum Fixed Ladder 176 15 52 AF16S
17 Rung Aluminum Fixed Ladder 187 16 57 AF17S
18 Rung Aluminum Fixed Ladder 198 17 60 AF18S
19 Rung Aluminum Fixed Ladder 209 18 63 AF19S
20 Rung Aluminum Fixed Ladder 220 19 66 AF20S

AF Series Aluminum Fixed Ladders with Safety Cage


Description Overall Length (inches) Length – Top to Bottom Rung (feet) Ship Weight (lbs.) Part Number
11 Rung Aluminum Fixed Ladder 121 10 251 AF11SC
12 Rung Aluminum Fixed Ladder 132 11 279 AF12SC
13 Rung Aluminum Fixed Ladder 143 12 302 AF13SC
14 Rung Aluminum Fixed Ladder 154 13 326 AF14SC
15 Rung Aluminum Fixed Ladder 165 14 360 AF15SC
16 Rung Aluminum Fixed Ladder 176 15 384 AF16SC
17 Rung Aluminum Fixed Ladder 187 16 407 AF17SC
18 Rung Aluminum Fixed Ladder 198 17 432 AF18SC
19 Rung Aluminum Fixed Ladder 209 18 460 AF19SC
20 Rung Aluminum Fixed Ladder 220 19 483 AF20SC
21 Rung Aluminum Fixed Ladder 231 20 507 AF21SC
22 Rung Aluminum Fixed Ladder 242 21 530 AF22SC
23 Rung Aluminum Fixed Ladder 253 22 557 AF23SC
24 Rung Aluminum Fixed Ladder 264 23 581 AF24SC
25 Rung Aluminum Fixed Ladder 275 24 604 AF25SC
26 Rung Aluminum Fixed Ladder 275 25 614 AF26SC
27 Rung Aluminum Fixed Ladder 297 26 655 AF27SC
28 Rung Aluminum Fixed Ladder 308 27 679 AF28SC
29 Rung Aluminum Fixed Ladder 319 28 715 AF29SC
30 Rung Aluminum Fixed Ladder 330 29 738 AF30SC

AF Series Aluminum Fixed Ladders with Walk-Thru Handrails


Description Overall Length (inches) Length – Top to Bottom Rung (feet) Ship Weight (lbs.) Part Number
11 Rung Aluminum Fixed Ladder with Walk-Thru Handrails 164 10 56 AF11W
12 Rung Aluminum Fixed Ladder with Walk-Thru Handrails 175 11 59 AF12W
13 Rung Aluminum Fixed Ladder with Walk-Thru Handrails 175 12 62 AF13W
14 Rung Aluminum Fixed Ladder with Walk-Thru Handrails 186 13 65 AF14W
15 Rung Aluminum Fixed Ladder with Walk-Thru Handrails 208 14 68 AF15W
16 Rung Aluminum Fixed Ladder with Walk-Thru Handrails 208 15 71 AF16W
17 Rung Aluminum Fixed Ladder with Walk-Thru Handrails 219 16 76 AF17W
18 Rung Aluminum Fixed Ladder with Walk-Thru Handrails 230 17 79 AF18W
19 Rung Aluminum Fixed Ladder with Walk-Thru Handrails 241 18 82 AF19W
20 Rung Aluminum Fixed Ladder with Walk-Thru Handrails 252 19 85 AF20W

AF Series Aluminum Fixed Ladders with Safety Cage & Walk-Thru Handrails


Description Overall Length (inches) Length – Top to Bottom Rung (feet) Ship Weight (lbs.) Part Number
11 Rung Aluminum Fixed Ladder with Safety Cage & Walk-Thru Handrails 164 10 269 AF11WC
12 Rung Aluminum Fixed Ladder with Safety Cage & Walk-Thru Handrails 175 11 292 AF12WC
13 Rung Aluminum Fixed Ladder with Safety Cage & Walk-Thru Handrails 186 12 320 AF13WC
14 Rung Aluminum Fixed Ladder with Safety Cage & Walk-Thru Handrails 186 13 343 AF14WC
15 Rung Aluminum Fixed Ladder with Safety Cage & Walk-Thru Handrails 197 14 374 AF15WC
16 Rung Aluminum Fixed Ladder with Safety Cage & Walk-Thru Handrails 224 15 401 AF16WC
17 Rung Aluminum Fixed Ladder with Safety Cage & Walk-Thru Handrails 230 16 424 AF17WC
18 Rung Aluminum Fixed Ladder with Safety Cage & Walk-Thru Handrails 230 17 448 AF18WC
19 Rung Aluminum Fixed Ladder with Safety Cage & Walk-Thru Handrails 252 18 473 AF19WC
20 Rung Aluminum Fixed Ladder with Safety Cage & Walk-Thru Handrails 252 19 500 AF20WC
21 Rung Aluminum Fixed Ladder with Safety Cage & Walk-Thru Handrails 263 20 524 AF21WC
22 Rung Aluminum Fixed Ladder with Safety Cage & Walk-Thru Handrails 274 21 547 AF22WC
23 Rung Aluminum Fixed Ladder with Safety Cage & Walk-Thru Handrails 285 22 575 AF23WC
24 Rung Aluminum Fixed Ladder with Safety Cage & Walk-Thru Handrails 296 23 598 AF24WC
25 Rung Aluminum Fixed Ladder with Safety Cage & Walk-Thru Handrails 307 24 621 AF25WC
26 Rung Aluminum Fixed Ladder with Safety Cage & Walk-Thru Handrails 318 25 656 AF26WC
27 Rung Aluminum Fixed Ladder with Safety Cage & Walk-Thru Handrails 329 26 680 AF27WC
28 Rung Aluminum Fixed Ladder with Safety Cage & Walk-Thru Handrails 340 27 703 AF28WC
29 Rung Aluminum Fixed Ladder with Safety Cage & Walk-Thru Handrails 351 28 728 AF29WC
30 Rung Aluminum Fixed Ladder with Safety Cage & Walk-Thru Handrails 362 29 751 AF30WC

Search product name or number

icon-search
