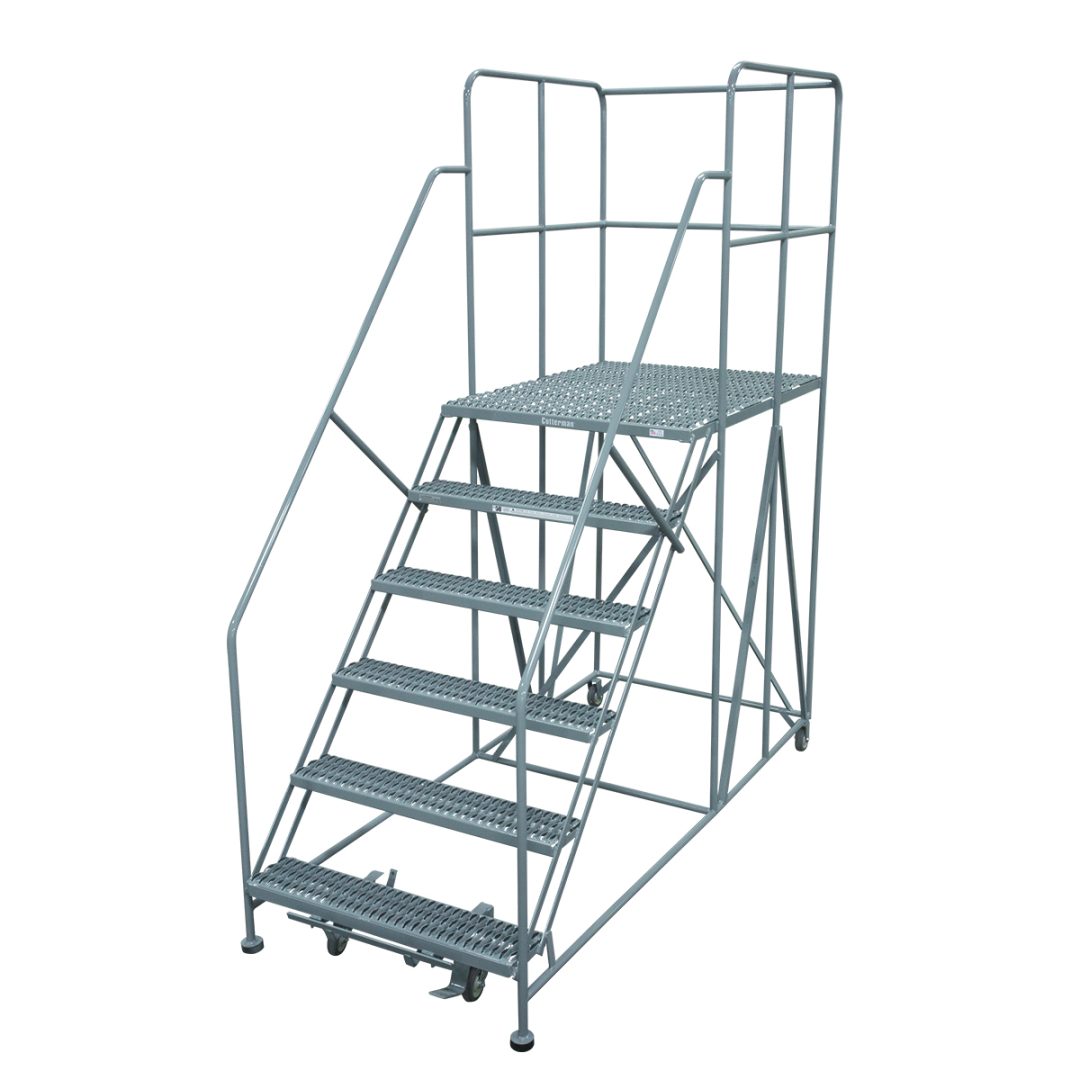

Welded Steel Work Platforms                 forward-descent

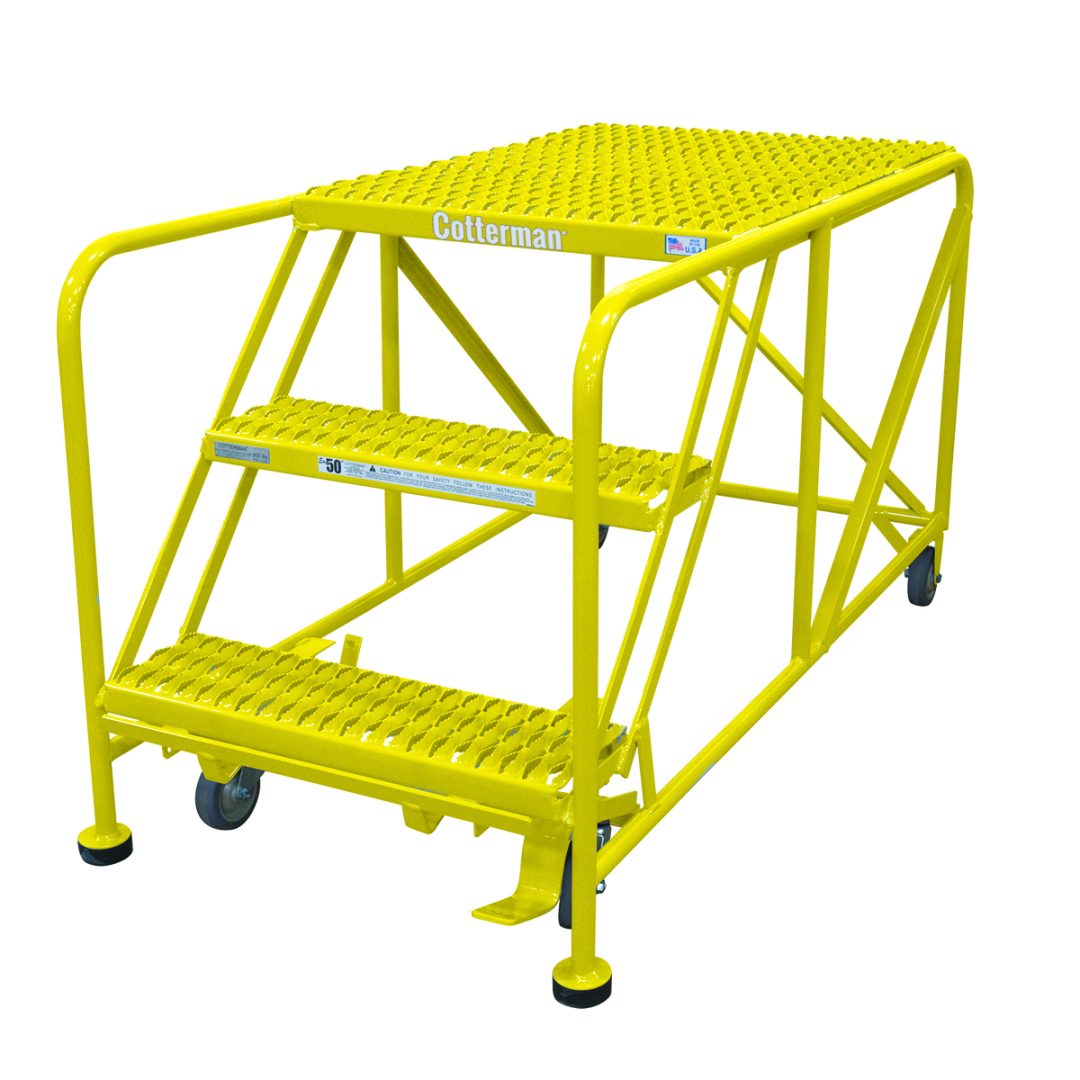

Heavy duty, Welded Steel Work Platforms

SERIES WP Work Platforms have a higher load capacity and larger platform for two people, plus tools.

800 lb. load rating.

  • 50° climb angle.
  • Rests on two 2-1/2″ rubber pads.
  • Two 4″ rigid heavy duty casters on the rear are standard. The optional Cotterman® SafeLock on the step side provides greater mobility.
  • Steps and platforms are constructed of heavy duty serrated tread.
  • 36″ high handrails with midrail are standard on 5 thru 7 step models. 30″ handrails optional on 2 thru 4 step models.
  • Special designs are available.
  • Work Platforms meet applicable OSHA and ANSI standards.
  • CAL-OSHA models also available.

VIEW PRODUCT LITERATURE Welded Steel Work Platforms

Superior CONSTRUCTION

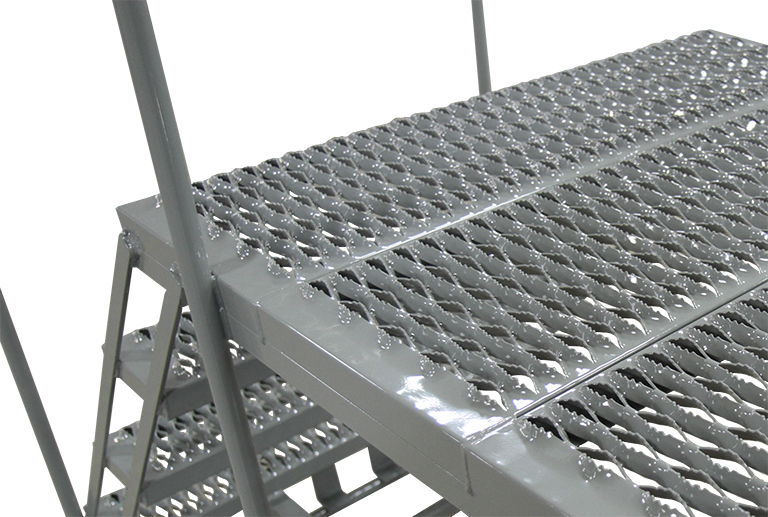

Dual Access Top Step
  • All tube members are 1” steel tube construction.
  • All welded construction.
  • Gray Powder coat is the standard finish.

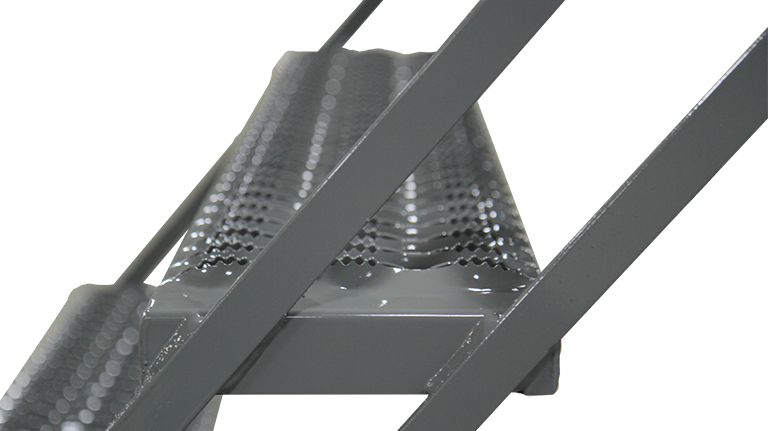

Dual Access Work Platform Step Welds

8 stairway tread support welds per step, for a stronger, longer lasting, and safer ladder.

Tread

Cotterman® Heavy Duty Serrated tread is an aggressive non-slip surface and open step design that prevents debris buildup.

RML Series 1000 Tread Serrated

cotterman UnaGrip Logo  (A3)

Tread WIDTH

Cotterman® offers various tread widths to accommodate almost any situation. So, it is up to you, the user, to determine how and where the ladder will be most commonly used. Work Platform steps vary in width from 24″ to 36″ to allow for space, storage and usage constraints or requirements.

RML Series 1000 Tread 24

24″ Tread Width

Open step design prevents debris buildup.

RML Series 1000 Tread 30

36″ Tread Width

Open step design prevents debris buildup.

Handrail Options

Work Platform Ladders
  • 2-4 step Work Platforms available with and without handrails.
  • 30″ Handrails available on 2-4 step Work Platforms.
  • 5-7 step Work Platforms come standard with 36″ handrails.

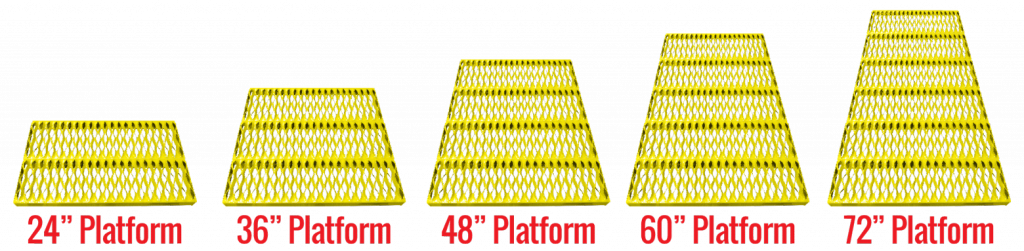

Platform Depth Options

WP Platform Depths

On The Ground

Work Platforms Feet

Standard  4″ Wheels with 2.5″ Rubber Pads

4″ wheels allow for easy transport of the Work Platform. While 2.5″ Rubber pads on the front legs assure a secure footing while in use.

WorkPlatform Safelock

4-Step & Up  SafeLock™ (optional)

with 4” wheels. Foot-activated locking mechanism with swivel casters and rigid rear wheels. Available on 4-step & above.

Choose Your Work Platform

First Thing’s First

First, we need to determine what size Work Platform you need. One of the most common mistakes made in ordering many ladders is getting them too large for the available workspace. Here are some things to consider before ordering your new Work Platform:

Choose your work Platform

A: Working Height

is the approximate height that you would like to be able to comfortably reach. It is usually calculated at 5.5′ above the ladder’s platform height.

B: Overall Height

is VERY important. You want to be sure that your ladder will not be too tall to fit into your workspace. This includes being able to fit through any doors that you may need to move it through, or under any ceilings or fixtures that you may have.

C: Top Step Height

is the measurement of the top step from the ground. It’s important that this measurement is not too far above or below your desired working height.

D: Base Width

is also very important because as ladders get taller, the base width increases. It is important to be sure that the ladder will not be too wide for your workspace. We offer different tread widths to accommodate most work areas.

E: Base Length

is the measurement of how long the base of the ladder runs. This is dependent upon the height of the ladder. The taller the ladder, the longer the base. Also lower climb angles increase base length.

*Dual Access Work Platforms also available for situations where access from both ends is required.

Product Selection Guide

Our NEW Product Selection guide can assist you in choosing the correct ladder for your application. Once you find the ladder that has the correct dimensions for you, just select the red model number, we’ll then ask you to select your tread type, tread width and platform depth. After that we’ll show you the model number(s) that is the best fit for your use.


Description Top Step Height Overall Height Working Height Part Number

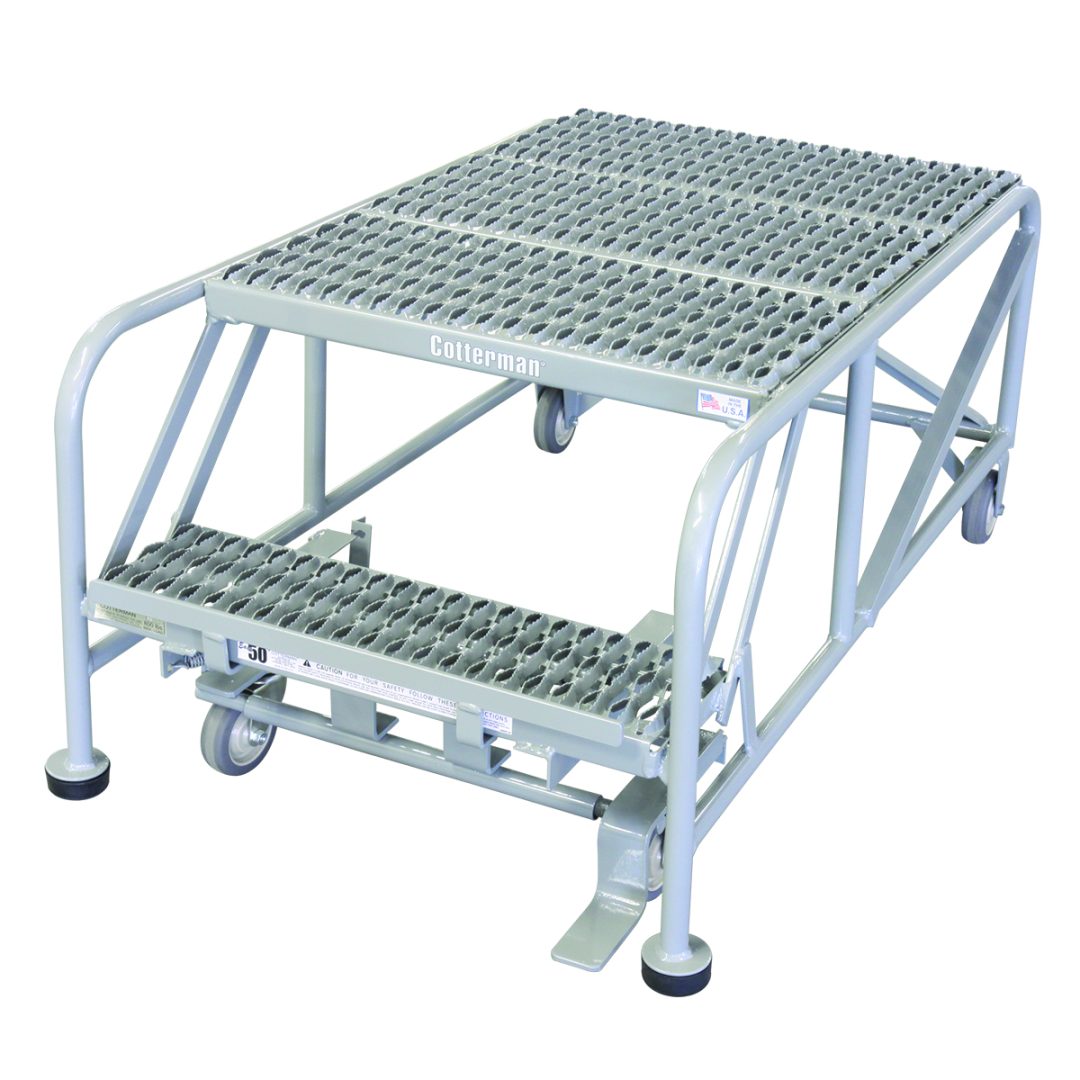

2 Step Steel Work Platform no Handrails 20 20 86 2WPN
3 Step Steel Work Platform no Handrails 30 30 96 3WPN

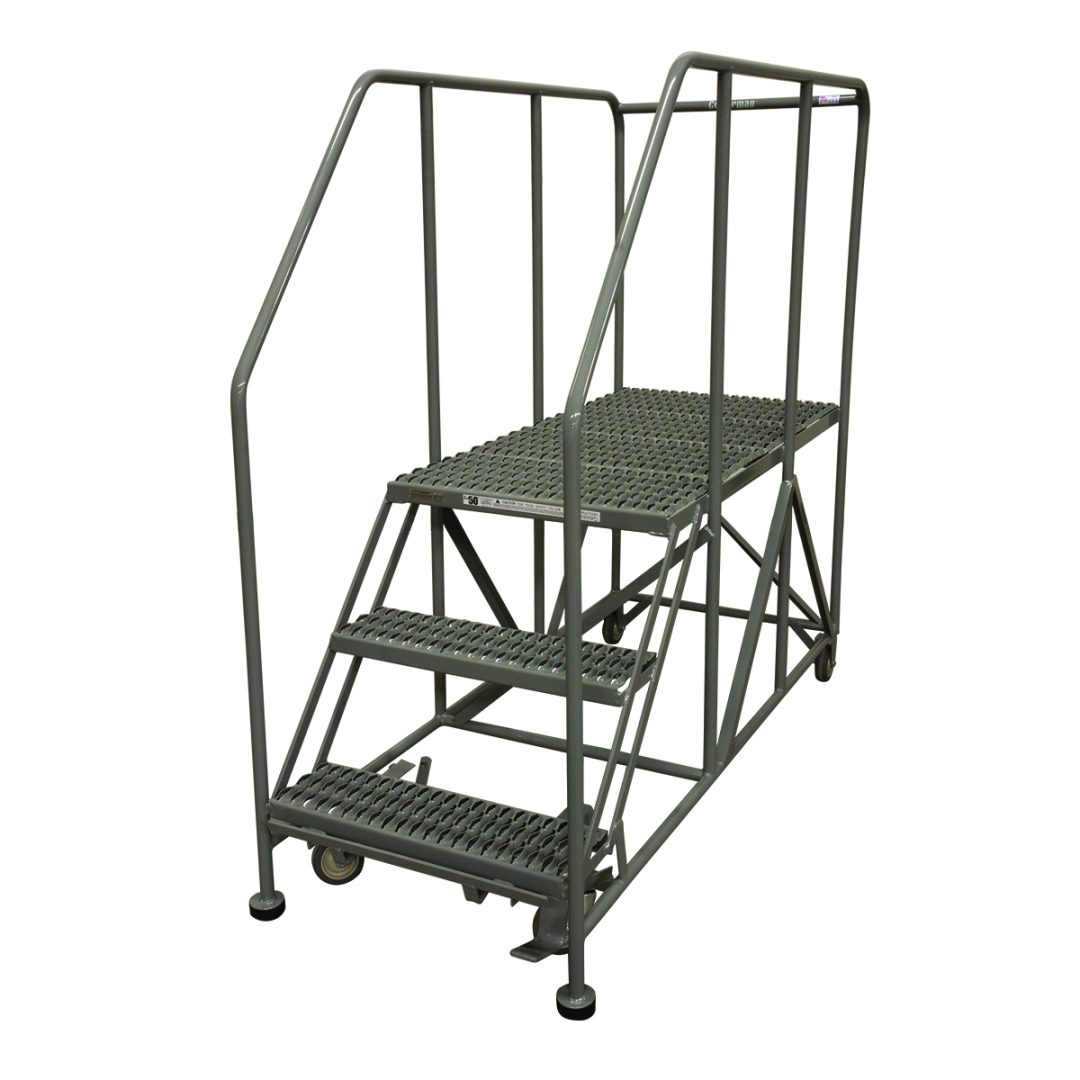

3 Step Steel Work Platform with Handrails 30 60 96 3WPR
4 Step Steel Work Platform no Handrails 40 40 106 4WPN

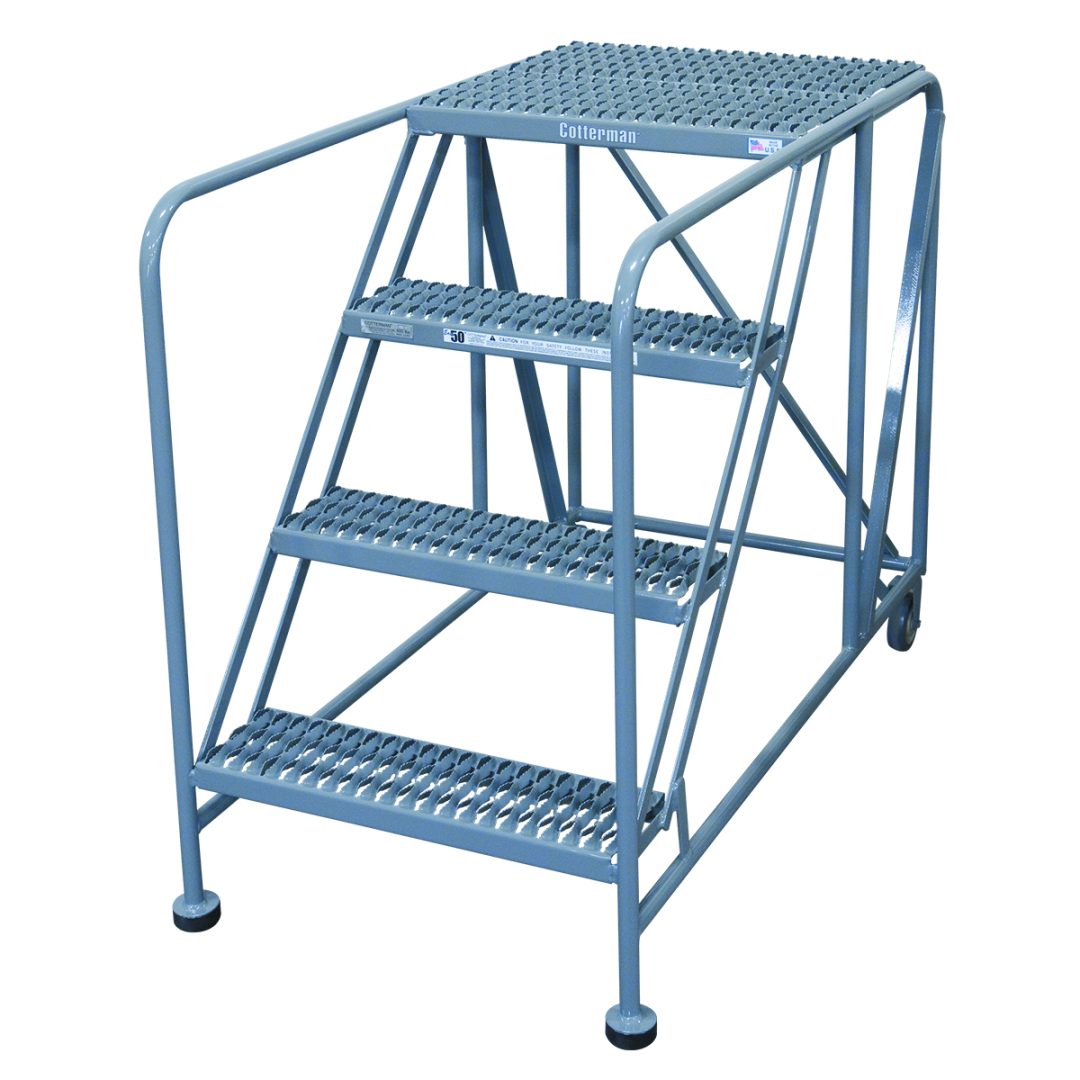

4 Step Steel Work Platform with Handrails 40 76 106 4WPR
5 Step Steel Work Platform with Handrails 50 86 116 5WPR
6 Step Steel Work Platform with Handrails 60 96 126 6WPR
7 Step Steel Work Platform with Handrails 70 106 136 7WPR
