TiltNRoll Logo

The TiltNRoll® features a special balanced design that allows it to tilt easily to the rolling position when pulled toward the user. The user is not required to extend a foot to assist in tilting the ladder to the rolling position. Once tilted, the ladder can be easily moved from job to job on the two 4″ diameter wheels. TiltNRoll® ladders are one-piece welded assemblies shipped ready-to-use. The ladders are supplied with handrails that extend 30″ above the top step. TiltNRoll® ladders come standard in Steel, but are available in Stainless Steel and Aluminum.

450 lb. load rating.

  • 59° climb angle.
  • Rests on four 2-1/2″ rubber pads.
  • 7″ deep steps with 10: deep top step (standard) 20″ deep top step available.
  • Gray powder coat is the standard finish.
  • Arrives ready-to-use.
  • Also available in Aluminum (350 lb. capacity).
  • Also available in Stainless Steel.
  • TiltNRoll® ladders meet applicable OSHA and ANSI standards.
  • Cal-OSHA models also available.

VIEW PRODUCT LITERATURE

cotterman tiltnroll tilt n roll rolling metal ladder

TiltNRoll® easily tilts back so the user can roll it from job to job.

Superior CONSTRUCTION

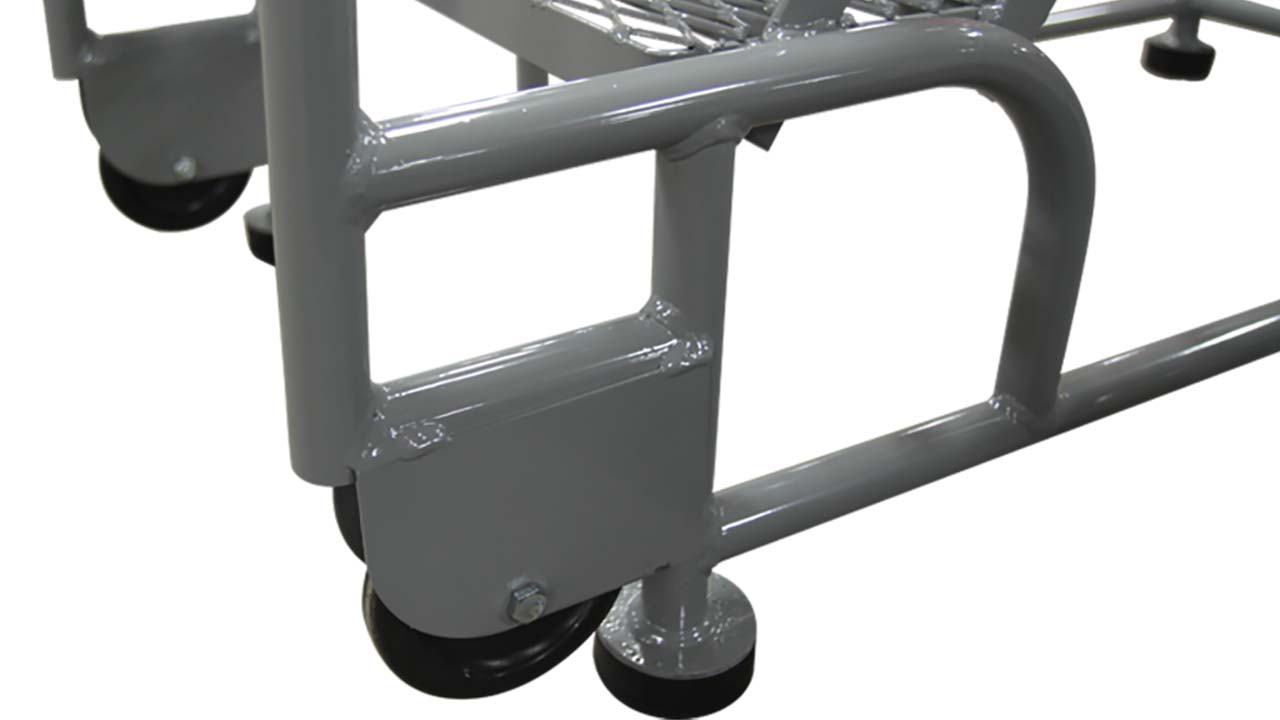

TNR Front Wheel
  • All tube members are 1” steel tube construction.
  • All welded construction.
  • Gray Powder coat is the standard finish.
RML Series 1000 Welds

8 stairway tread support welds per step, for a stronger, longer lasting, and safer ladder.

TNR Tube Construction

Top step is reinforced by welded angle.

Multiple Tread OPTIONS

Cotterman® offers a variety of tread types to suit your needs. So, no matter what environment your ladder will be in, we have a tread that will offer the optimal grip.

RML Series 1000 Tread Serrated

cotterman UnaGrip Logo  (A3)

RML Series 1000 Tread Expanded

Expanded Metal (A1)

Open step design prevents debris buildup.

RML Series 1000 Tread Perforated

Perforated (A6)

Perforated holes provide excellent slip resistance.

Tread WIDTH

Cotterman® offers various tread widths to accommodate almost any situation. So, it is up to you, the user, to determine how and where the ladder will be most commonly used. TiltNRoll® steps vary in widths from 16″ to 24″ to allow for space, storage and usage constraints or requirements.

RML Series 1000 tread 16

16″ Tread Width

Open step Premium Serrated Tread.

RML Series 1000 Tread 24

24″ Tread Width

Open step design prevents debris buildup.

Choose Your TiltNRoll Ladder

First Thing’s First

First, we need to determine what size ladder you need. One of the most common mistakes made in ordering many ladders is getting them too large for the available workspace. Here are some things to consider before ordering your new ladder:

Rolling Metal Ladders FTF

A: Working Height

is the approximate height that you would like to be able to comfortably reach. It is usually calculated at 5.5′ above the ladder’s platform height.

B: Overall Height

is VERY important. You want to be sure that your ladder will not be too tall to fit into your workspace. This includes being able to fit through any doors that you may need to move it through, or under any ceilings or fixtures that you may have.

C: Top Step Height

is the measurement of the top step from the ground. It’s important that this measurement is not too far above or below your desired working height.

D: Base Width

is also very important because as ladders get taller, the base width increases. It is important to be sure that the ladder will not be too wide for your workspace. We offer different tread widths to accommodate most work areas.

E: Base Length

is the measurement of how long the base of the ladder runs. This is dependent upon the height of the ladder. The taller the ladder, the longer the base. Also lower climb angles increase base length.

*Options such as deeper top steps are available, and will increase the base length. Top steps are available in 10″ – 12″(standard), 20″ – 24″, and 30″.

Product Selection Guide

Our NEW Product Selection guide can assist you in choosing the correct ladder for your application. Once you find the ladder that has the correct dimensions for you, just select the red model number, we’ll then ask you to select your tread type, tread width and platform depth. After that we’ll show you the model number(s) that is the best fit for your use.

TiltNRoll® Steel


Description Top Step Height Overall Height Working Height Short Part Number

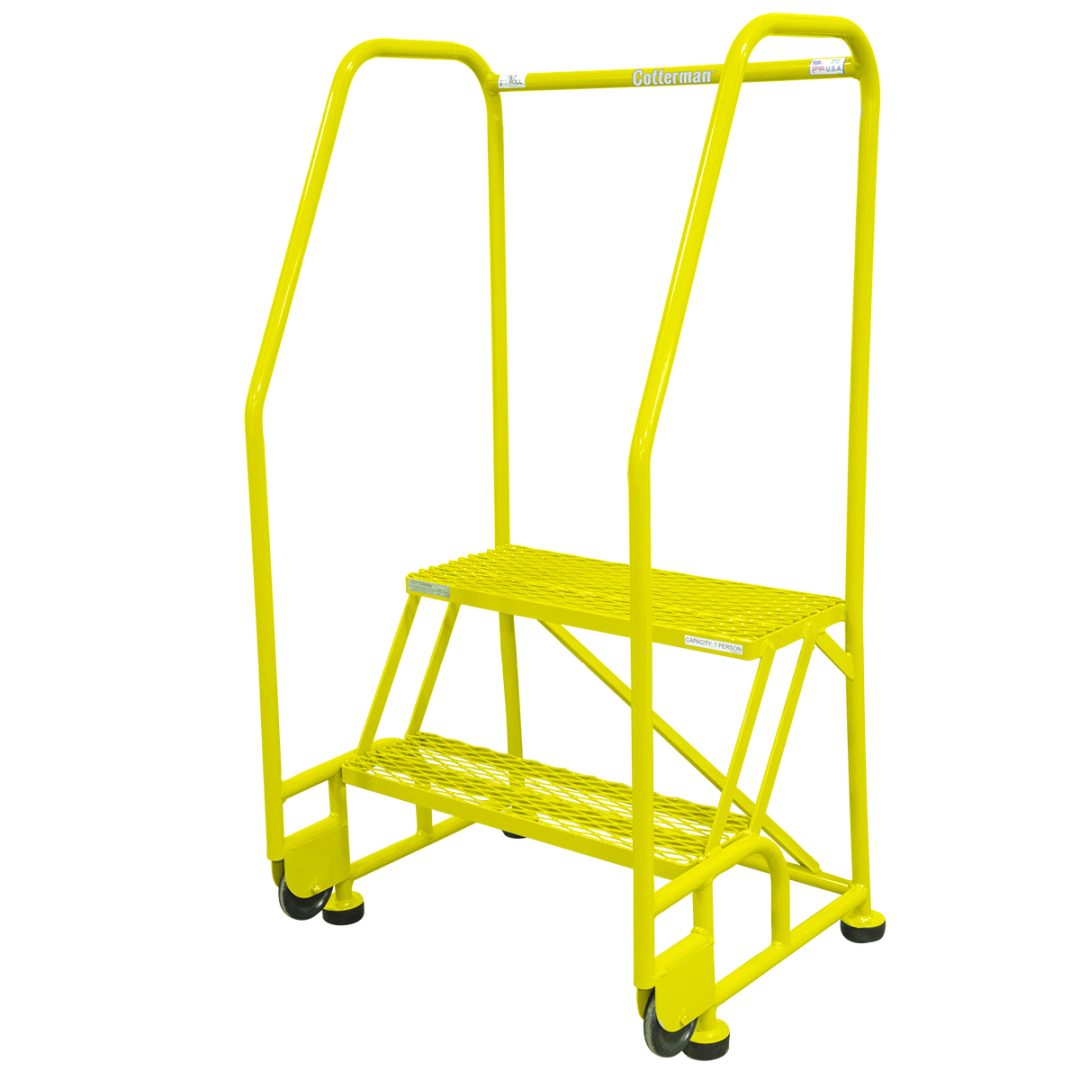

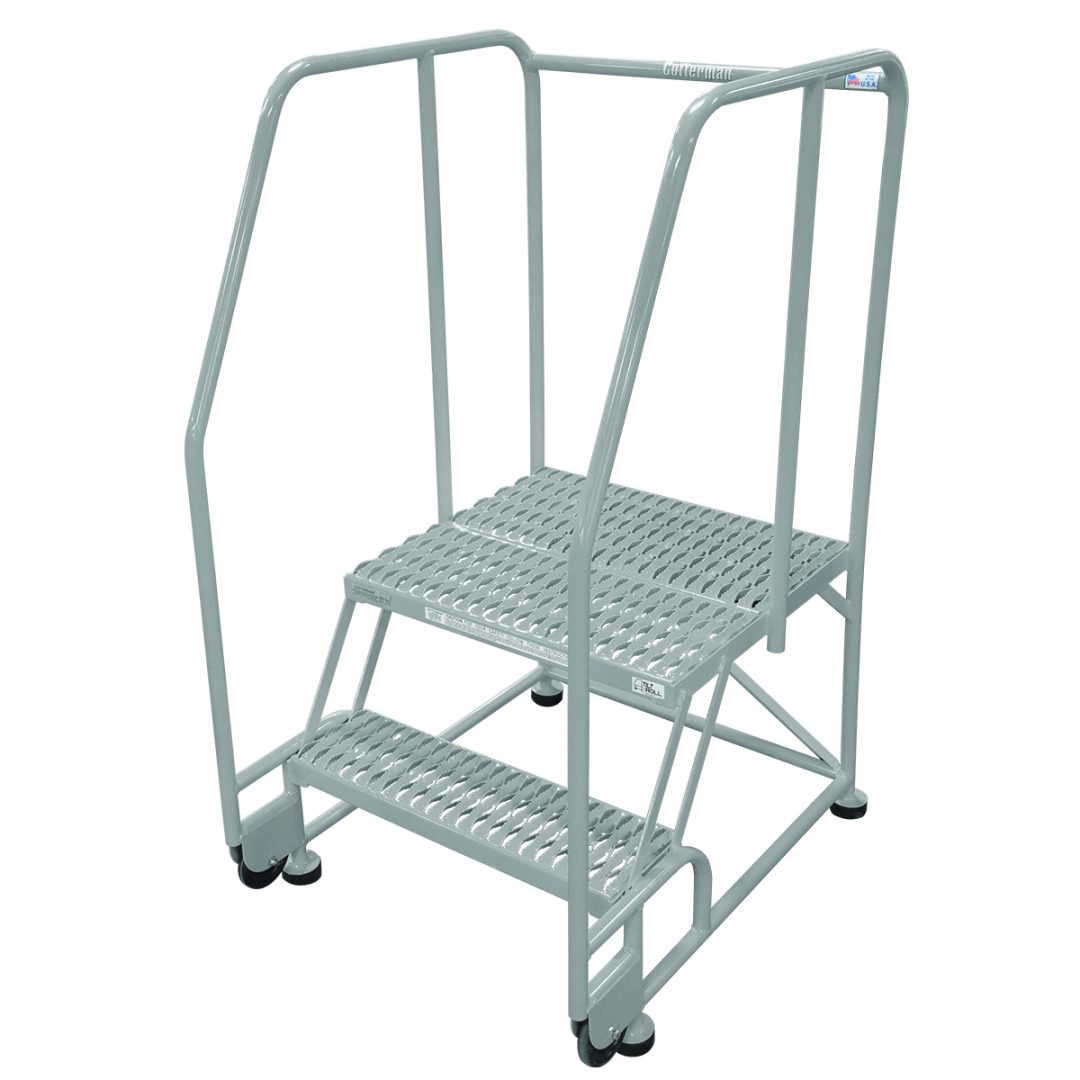

2 Step Steel TiltNRoll 20 50 86 2TR
3 Step Steel TiltNRoll 30 60 96 3TR

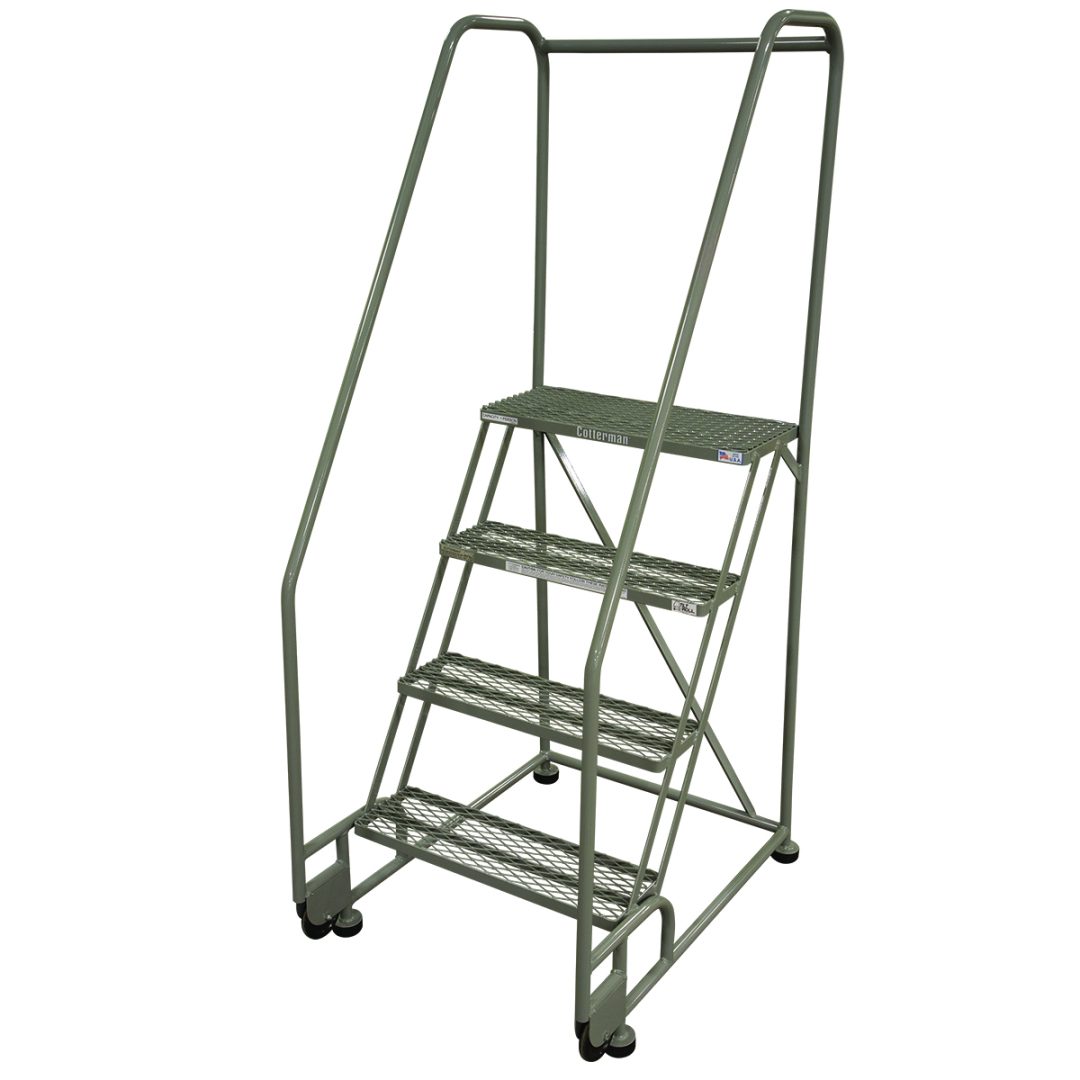

4 Step Steel TiltNRoll 40 70 106 4TR

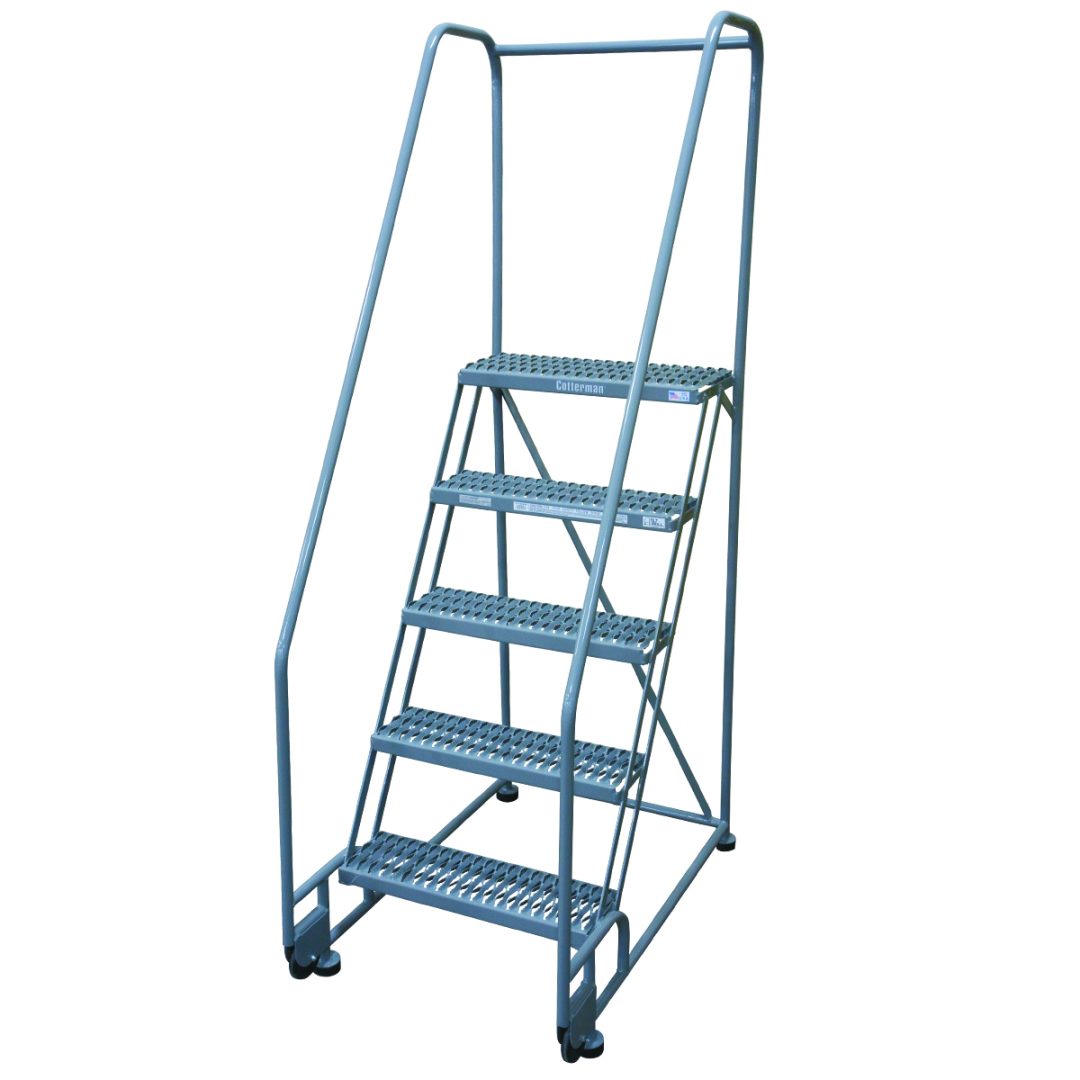

5 Step Steel TiltNRoll 50 80 116 5TR

TiltNRoll® Aluminum


Description Top Step Height Overall Height Working Height Short Part Number
2 Step Aluminum TiltNRoll 20 50 86 2TA
3 Step Aluminum TiltNRoll 30 60 96 3TA
4 Step Aluminum TiltNRoll 40 70 106 4TA
5 Step Aluminum TiltNRoll 50 80 116 5TA

TiltNRoll® Stainless Steel


Description Top Step Height Overall Height Working Height Short Part Number
2 Step Stainless Steel TiltNRoll 20 50 86 2TS

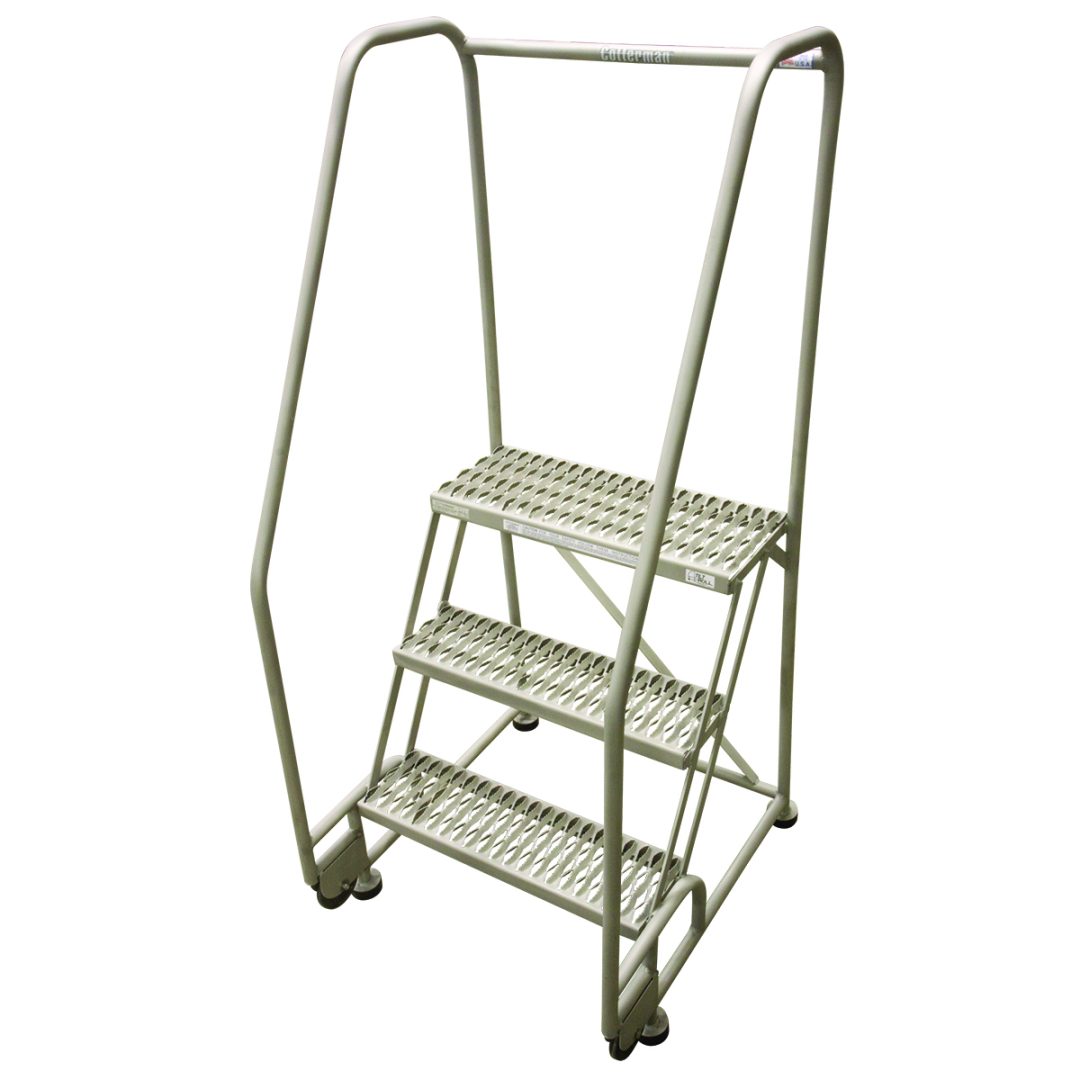

3 Step Stainless Steel TiltNRoll 30 60 96 3TS
4 Step Stainless Steel TiltNRoll 40 70 106 4TS
5 Step Stainless Steel TiltNRoll 50 80 116 5TS
