Overhead Work Platform Workmaster

Workmaster Logo

The WORKMASTER® Overhead Work Platform boosts the versatility of your forklift trucks. Quick access to overhead maintenance jobs, construction and repairs, stock selection or just simple light bulb replacement.

1000 lb. load rating.

  • 66″H back guard.
  • 42″ railing height.
  • 1-1/4″ steel tube railing.
  • 3-3/4″x7-1/2″ tine sleeve.
  • 4″ toeboard.
  • Meet applicable OSHA and ANSI standards.

VIEW PRODUCT LITERATURE Workmaster Logo

OPTIONS

WORKMASTER® offers a variety of options to make the job even easier!

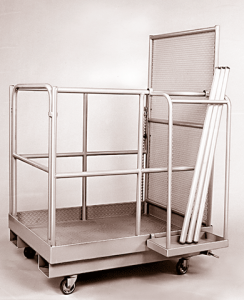

Vertical Tube Caddy

Vertical Tube Caddy (VT)

Attaches to the side of the platform and holds a box of 4′ or 8′ fluorescent tubes. Conserves valuable platform space for tools or supply storage.

Overhead Guard

Overhead Guard (OG)

Attachable overhead guard can be used to help protect workers from falling objects. The overall height of the guard is 80″ from the platform deck to the top of the guard.

Horizontal Tube Caddy

Horizontal Tube Caddy (HT)

The horizontal caddy slides onto the side rails of the platform and stores 4′ and 8′ fluorescent tubes. Dual level tray keeps old and new tubes separated.

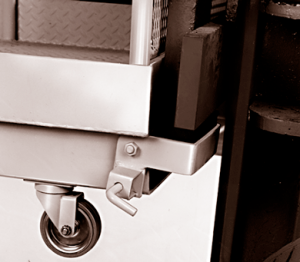

Stockmaster Casters

Optional Casters (SC)

These easy rolling 4″ casters bolt directly to the bottom of tine sleeves.

Sliding Tool Tray

Sliding Tool Tray (TT)

This handy work shelf secures to the side rails of the platform. It keeps tools within reach without restricting platform space.

Choose Your WorkMaster Overhead Platform


MODEL NO. PLATFORM SIZE TINE SLEEVE SPACING WEIGHT LBS.
WM-100 36″Wx48″D 26″ c/c 204
WM-101 48″Wx36″D 30″ c/c 194
WM-103 36″Wx36″D 26″ c/c 173
WM-104 48″Wx48″D 30″ c/c 309
