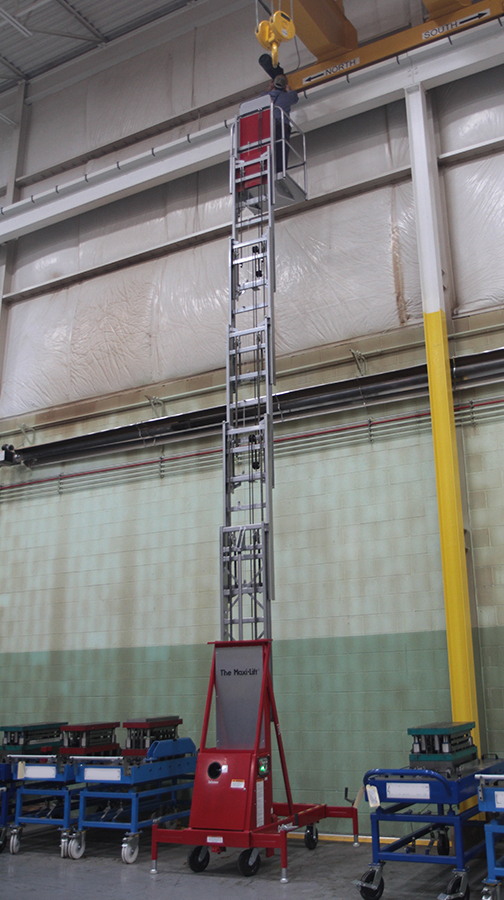

The Maxi Lift® line of push-around lifts are designed for overhead maintenance tasks. We offer two electro-hydraulic lifts, one with a 25′ platform height that uses outriggers and one at a 17′ height that has no outriggers, for a smaller footprint while in use. The winch model has a 15′ platform height and is not powered, so it’s easy to maintain and use.

VIEW PRODUCT LITERATURE

MANUAL WINCH Elevating Work Platform

MODEL ML-15W An economical alternative to electro-hydraulic lifts, the Cotterman® Manual Winch lift is simple to use and maintain. The lift is quickly elevated to the desired working height with a hand winch, then the user climbs a later to the platform. Built-in safety features include a friction brake on the winch and outriggers that can be placed in an X-pattern or rectangular.

  • Load Rating – 300 lbs.
  • Retracted Height – 79″
  • Platform Height – 15′
  • Overall Height – 18.5′
  • Working Height – 20.5′
  • Guardrail Height – 42″
  • Base Width – 29″
  • Base Length – 59″
  • Foot Print 90° – 63″x57″
  • Foot Print 45° – 66″x72″
  • Shipping Weight – 820 lbs.

17 ft. Outrigger-less ELECTRO-HYDRAULIC Push-Around Lift

MODEL MLN-176BH The outrigger-less Maxi-Lift® has a heavier base to provide stability without the use of outriggers, providing a narrow footprint while n use. Lift is ready to use by activating two floor locks in the front of the base.

  • Load Rating – 400 lbs.
  • Retracted Height – 77.5″
  • Platform Height – 17.5′
  • Overall Height – 20.5′
  • Working Height – 22.5′
  • Guardrail Height – 42″
  • Base Width – 30″
  • Base Length – 58″
  • Shipping Weight – 1217 lbs.
  • 12v DC power.
  • 110 AC outlet in platform.
  • Up/Down controls in platform and base.
  • Key operated control panel.
  • Emergency Stop button at platform and base.
  • Sliding midrail for platform entry/exit.
  • 8″ solid phenolic casters.
  • Fits through standard 30″ doorways.

25 ft. ELECTRO-HYDRAULIC Push-Arount Lift

MODEL ML-256BH The ML-256BH is our high-reaching model, designed to work comfortably at 30.5 feet. At this height, outriggers are required.

  • Load Rating – 300 lbs.
  • Retracted Height – 77.5″
  • Platform Height – 25.5′
  • Overall Height – 28.5′
  • Working Height – 31′
  • Guardrail Height – 42″
  • Base Width – 30″
  • Base Length – 63″
  • Outrigger Footprint – 54″x63″
  • Shipping Weight – 1214 lbs.

  • 12v DC power.
  • 110 AC outlet in platform.
  • Up/Down controls in platform and base.
  • Key operated control panel.
  • Emergency Stop button at platform and base.
  • Sliding midrail for platform entry/exit.
  • 8″ solid phenolic casters.
  • Fits through standard 30″ doorways.

Description Platform Height Overall Height Working Height Part Number
15′ Manual Winch Elevating Work Platform Up to 15′ 18.5′ 20.5′ ML-15W P2
25′ Electro Hydraulic Push Around Lift Up to 25′ 28.5′ 30.5′ ML-256BH P2
17′ Outriggerless Electro Hydraulic Push Around Lift Up to 17′ 20.5′ 22.5′ MLN-176BH p2
