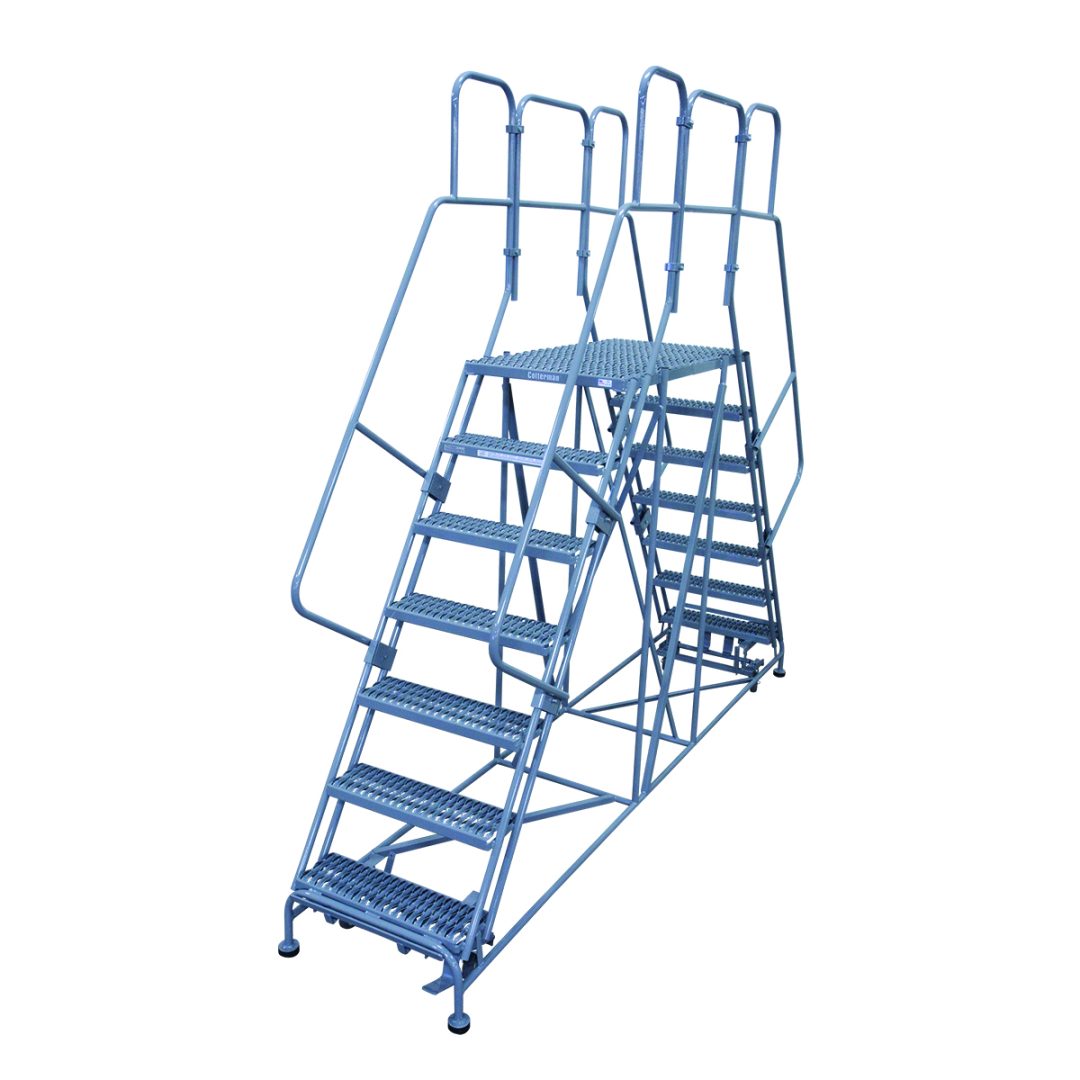

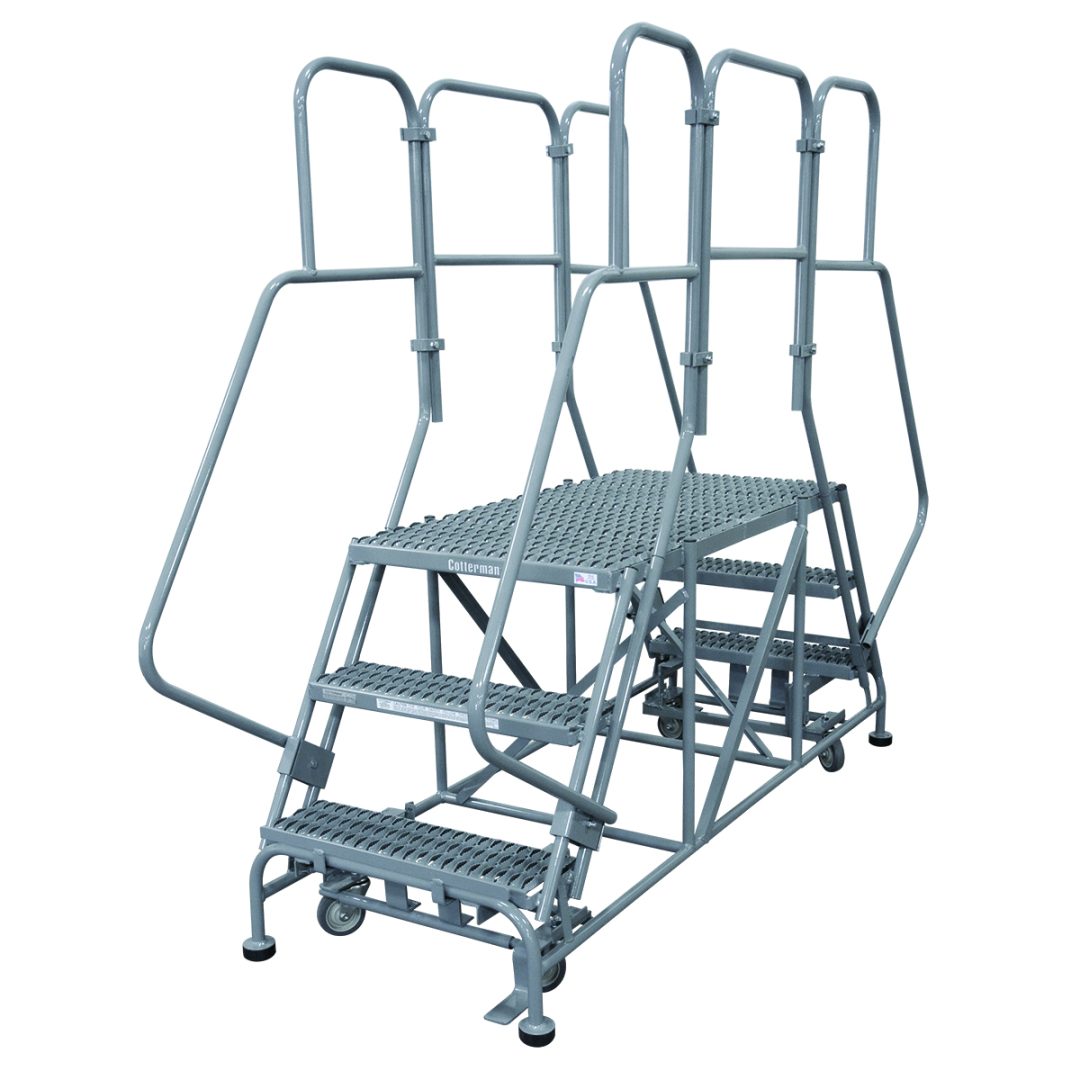

Heavy duty, Dual Access Work Platforms

SERIES DWP Dual Access Work Platforms have a higher load capacity and larger platform for two people with tools, plus stairs at each end of the platform.

800 lb. load rating.

  • 59° climb angle.
  • Rests on 4 2-1/2″ rubber pads.
  • Cotterman® SafeLock is provided on both ends for mobility.
  • Steps and platforms are constructed of heavy duty serrated tread.
  • 36″ high handrails with midrail ship knocked-down for field assembly.
  • Dual Access Work Platforms meet applicable OSHA and ANSI standards.
  • CAL-OSHA models also available.

VIEW PRODUCT LITERATURE

Superior CONSTRUCTION

wp-top-step
  • All tube members are 1” steel tube construction.
  • All welded construction.
  • Gray Powder coat is the standard finish.
wp-step-welds

8 stairway tread support welds per step, for a stronger, longer lasting, and safer ladder.

Tread

Cotterman® Heavy Duty Serrated tread is an aggressive non-slip surface and open step design that prevents debris buildup.

rml-series-1000-tread-serrated

  (A3)

Tread WIDTH

Cotterman® offers various tread widths to accommodate almost any situation. So, it is up to you, the user, to determine how and where the ladder will be most commonly used. Work Platform steps vary in width from 24″ to 36″ to allow for space, storage and usage constraints or requirements.

rml-series-1000-tread-24

24″ Tread Width

Open step design prevents debris buildup.

rml-series-1000-tread-30

36″ Tread Width

Open step design prevents debris buildup.

On The Ground

dwp-floor

Standard  Dual SafeLock™

All Dual Access Work Platforms come standard with Dual SafeLock™ foot-activated locking mechanisms with swivel casters.

Platform Depth Options

dwp-platform-depths

First Thing’s First

First, we need to determine what size Dual Access Work Platform you need. One of the most common mistakes made in ordering many ladders is getting them too large for the available workspace. Here are some things to consider before ordering your new Dual Access Work Platform:

wp-ftf

A: Working Height

is the approximate height that you would like to be able to comfortably reach. It is usually calculated at 5.5′ above the ladder’s platform height.

B: Overall Height

is VERY important. You want to be sure that your ladder will not be too tall to fit into your workspace. This includes being able to fit through any doors that you may need to move it through, or under any ceilings or fixtures that you may have.

C: Top Step Height

is the measurement of the top step from the ground. It’s important that this measurement is not too far above or below your desired working height.

D: Base Width

is also very important because as ladders get taller, the base width increases. It is important to be sure that the ladder will not be too wide for your workspace. We offer different tread widths to accommodate most work areas.

E: Base Length

is the measurement of how long the base of the ladder runs. This is dependent upon the height of the ladder. The taller the ladder, the longer the base. Also lower climb angles increase base length.

*Work Platforms also available for situations where access from both ends is not required.

Product Selection Guide

Our NEW Product Selection guide can assist you in choosing the correct ladder for your application. Once you find the ladder that has the correct dimensions for you, just select the red model number, we’ll then ask you to select your tread type, tread width and platform depth. After that we’ll show you the model number(s) that is the best fit for your use.


Description Top Step Height Overall Height Working Height Part Number
3 Step Dual Access Rolling Work Plarform 30 66 96 3DWP
4 Step Dual Access Rolling Work Plarform 40 76 106 4DWP
5 Step Dual Access Rolling Work Plarform 50 86 116 5DWP
6 Step Dual Access Rolling Work Plarform 60 96 126 6DWP
7 Step Dual Access Rolling Work Plarform 70 106 136 7DWP
