5011ra1

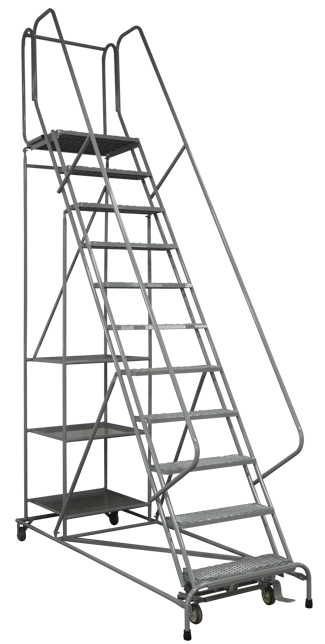

Series 5000 all-welded steel stock-picking safety ladders offer the advantages of a rugged on-piece welded ladder with the versatility of a stock-picking truck.

500 lb. load rating. (300 lbs. ladder • 200 lbs. shelving)

  • Available in 6 different heights, each ladder has two (6-7 step) or three (8-11 step) 24″x24″ heavy gauge steel shelves, plus a 24″Wx20″D top step with 10″ folding platform work shelf.
  • Series 1000 ladders meet applicable OSHA and ANSI standards.
  • CAL-OSHA models also available.

VIEW PRODUCT LITERATURE

Superior CONSTRUCTION

rml-series-1000-tube-const
  • All tube members are 1” steel tube construction.
  • All welded construction.
  • Gray Powder coat is the standard finish.
rml-series-1000-welds

8 stairway tread support welds per step, for a stronger, longer lasting, and safer ladder.

Multiple Tread OPTIONS

Cotterman® offers a variety of tread types to suit your needs. So, no matter what environment your ladder will be in, we have a tread that will offer the optimal grip.

rml-series-1000-tread-serrated

  (A3)

rml-series-1000-tread-expanded

Expanded Metal (A1)

Open step design prevents debris buildup.

rml-series-1000-tread-perforated

Perforated (A6)

Perforated holes provide excellent slip resistance.

Tread WIDTH

All Series 5000 ladders have 24″ wide steps.

rml-series-1000-tread-24

24″ Tread Width

On The Ground

rml-series-1000-caster-2

4-Step & Up  SafeLock™

with 4” wheels. Foot-activated locking mechanism with swivel casters and rigid rear wheels. Available on 4-step & above.

First Thing’s First

First, we need to determine what size ladder you need. One of the most common mistakes made in ordering many ladders is getting them too large for the available workspace. Here are some things to consider before ordering your new ladder:

rml-first-things-first

A: Working Height

is the approximate height that you would like to be able to comfortably reach. It is usually calculated at 5.5′ above the ladder’s platform height.

B: Overall Height

is VERY important. You want to be sure that your ladder will not be too tall to fit into your workspace. This includes being able to fit through any doors that you may need to move it through, or under any ceilings or fixtures that you may have.

C: Top Step Height

is the measurement of the top step from the ground. It’s important that this measurement is not too far above or below your desired working height.

D: Base Width

is also very important because as ladders get taller, the base width increases. It is important to be sure that the ladder will not be too wide for your workspace. We offer different tread widths to accommodate most work areas.

E: Base Length

is the measurement of how long the base of the ladder runs. This is dependent upon the height of the ladder. The taller the ladder, the longer the base. Also lower climb angles increase base length.

*Options such as deeper top steps are available, and will increase the base length. Top steps are available in 10″ – 12″(standard), 20″ – 24″, and 30″.

Product Selection Guide

Our NEW Product Selection guide can assist you in choosing the correct ladder for your application. Once you find the ladder that has the correct dimensions for you, just select the red model number, we’ll then ask you to select your tread type, tread width and platform depth. After that we’ll show you the model number(s) that is the best fit for your use.


Description Top Step Height Overall Height Working Height Part Number
6 Step Steel Stock and Order Picking Rolling Metal Ladder 60 90 126 5006R
7 Step Steel Stock and Order Picking Rolling Metal Ladder 70 100 136 5007R
8 Step Steel Stock and Order Picking Rolling Metal Ladder 80 110 146 5008R
9 Step Steel Stock and Order Picking Rolling Metal Ladder 90 120 156 5009R
10 Step Steel Stock and Order Picking Rolling Metal Ladder 100 130 166 5010R
11 Step Steel Stock and Order Picking Rolling Metal Ladder 110 140 176 5011R
